Thundercomm TurboX C7790 Android and Linux development kit features Qualcomm Dragonwing Q-7790 Edge AI SoC
Thundercomm has launched the TurboX C7790 development kit, a compact edge AI platform built around the Qualcomm Dragonwing Q-7790 (CQ7790S) processor. The
Condensed by AI-Portable from Editorial queue.
Thundercomm has launched the TurboX C7790 development kit , a compact edge AI platform built around the Qualcomm Dragonwing Q-7790 (CQ7790S) processor. The kit offers up to 24 TOPS of AI performance and support for both Android and Linux operating systems.

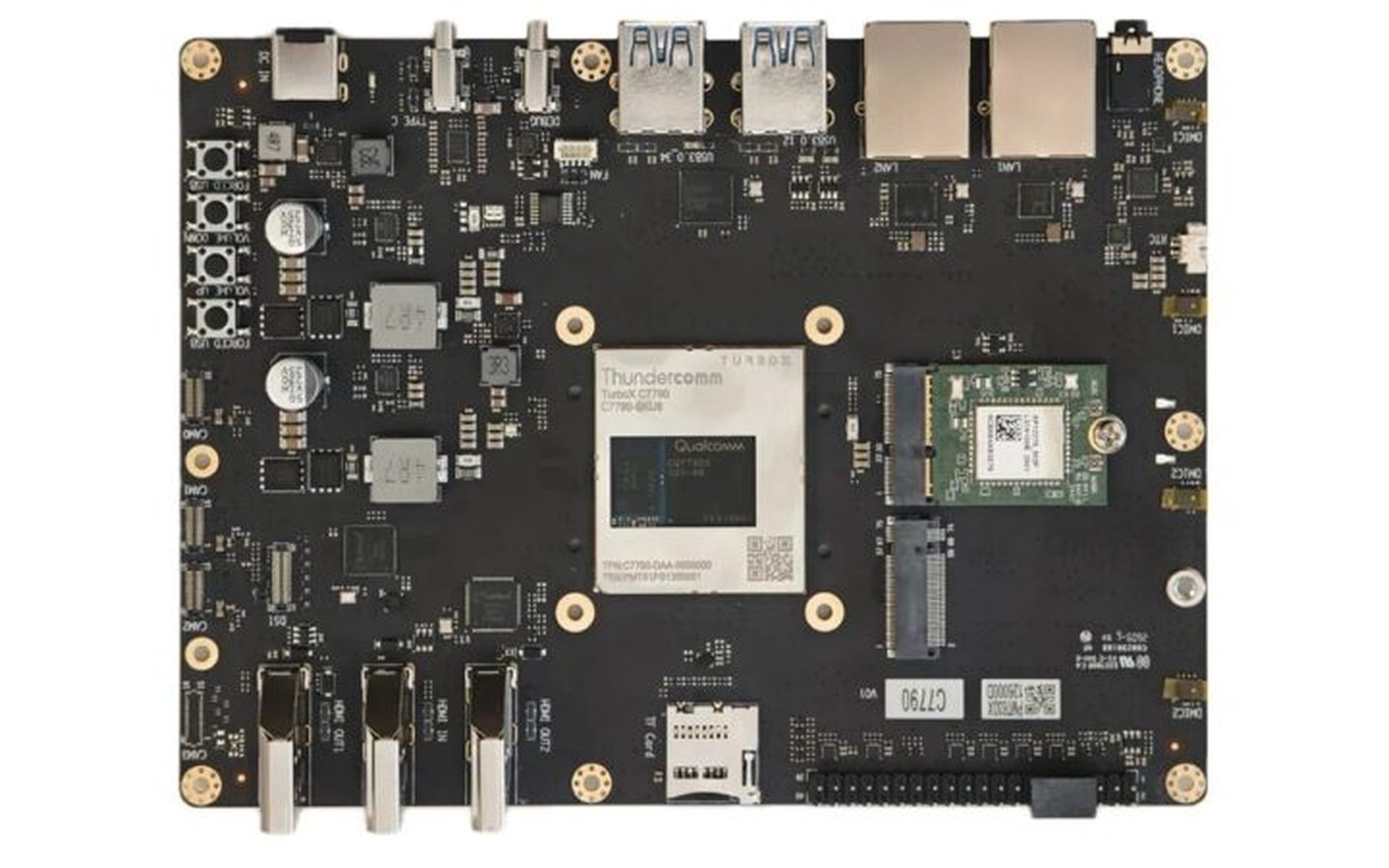

The development kit pairs a TurboX C7790 system-on-module equipped with 12GB LPDDR5X RAM and 128GB flash with a carrier board featuring a wide range of interfaces from dual GbE to HDMI, USB-C, and MIPI DSI display interfaces. Target applications include AI cameras, video conferencing, robotics, and edge AI gateways.
TurboX C7790 Development Kit specifications:
System-on-Module – TurboX C7790 SoC – Qualcomm Dragonwing Q-7790 (CQ7790S) 4nm processor CPU – Octa-core Kryo processor up to 2.8 GHz 1x Gold+ core @ 2.8 GHz 4x Gold cores @ 2.4 GHz 3x Silver cores @ 1.8 GHz GPU – Qualcomm Adreno 722 GPU up to 1.15 GHz VPU Video Decode – 4K120 H.264/H.265/AV1 Video Encode – 4K60 formats: H.264/H.265 Audio DSP (LPASS) – Low-power idle mode with an embedded NPU (eNPU5); always-on subsystem AI Acceleration – 24 TOPS (INT8), NSP3, 8K HMX, 4x HVX Memory – 12GB LPDDR5X Storage 128GB flash storage (UFS/eMMC/NAND constraints apply) SDC (SD3.0) for SD cards
SoC – Qualcomm Dragonwing Q-7790 (CQ7790S) 4nm processor CPU – Octa-core Kryo processor up to 2.8 GHz 1x Gold+ core @ 2.8 GHz 4x Gold cores @ 2.4 GHz 3x Silver cores @ 1.8 GHz GPU – Qualcomm Adreno 722 GPU up to 1.15 GHz VPU Video Decode – 4K120 H.264/H.265/AV1 Video Encode – 4K60 formats: H.264/H.265 Audio DSP (LPASS) – Low-power idle mode with an embedded NPU (eNPU5); always-on subsystem AI Acceleration – 24 TOPS (INT8), NSP3, 8K HMX, 4x HVX
Carrier board Storage M.2 M-Key slot for NVMe SSD MicroSD card slot Display 2x HDMI port DisplayPort over USB Type-C MIPI DSI connector (hardware muxed; cannot be used concurrently with HDMI OUT1) Camera 3x 4-lane D-PHY camera connectors (supports triple ISP, 21MP+21MP+21MP) HDMI input port Audio 3.5mm headphone jack 4x onboard Digital Microphones (DMIC) Digital (I2S) audio via HDMI output Digital (SoC native) audio via HDMI output Digital (I2S) audio via HDMI input Networking 2x 1000M Gigabit Ethernet ports (RJ45) Optional WiFi and Bluetooth via M.2 E-Key socket USB 4x USB 3.0 Type-A connectors USB 3.1 Type-C port Debugging – USB Type-C connector with UART support for debugging Expansion M.2 M-Key socket for NVMe SSD M.2 E-Key socket for Wi-Fi/BT module 40-pin expansion header Misc Fan connector RTC connector FORCE USB Boot button Power On, Volume Up/Down tactile switches Accelerometer + Gyro (A+G sensor) E-Compass
Storage M.2 M-Key slot for NVMe SSD MicroSD card slot
Display 2x HDMI port DisplayPort over USB Type-C MIPI DSI connector (hardware muxed; cannot be used concurrently with HDMI OUT1)
