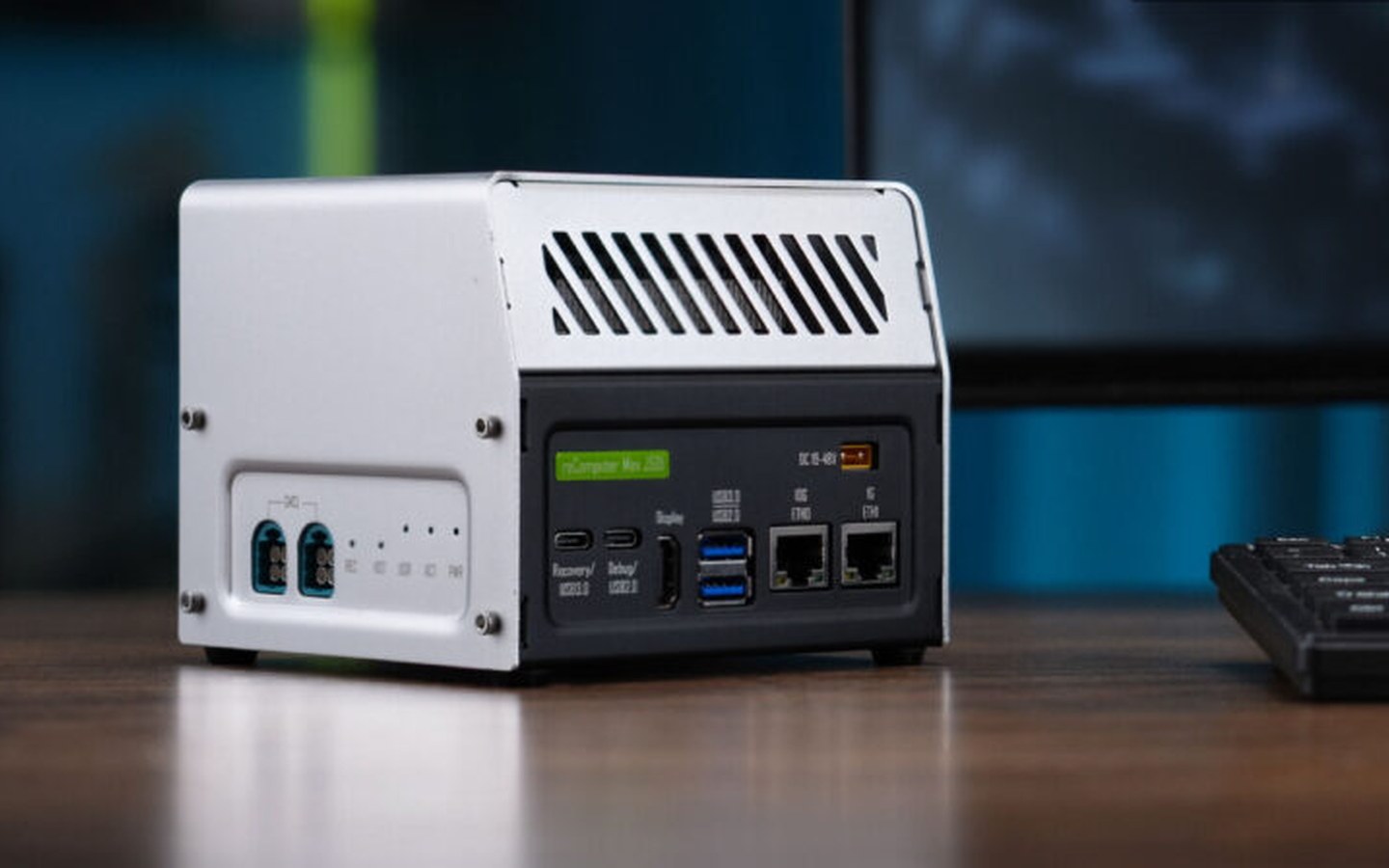

Designed for robotics applications, the reComputer Mini J501 is an Edge AI computer powered by an NVIDIA Jetson AGX Orin 64GB or 32GB module, delivering up ot 275 TOPS of AI performance.
The computer features 10GbE and GbE RJ45 ports, HDMI 2.1 video output, two USB 3.2 ports, two USB 2.0 Type-C Debug/Recovery ports, a 128 M.2 NVMe SSD, two FAKRA connectors for up to eight GMSL2 cameras, and a range of other I/O connectors.
System-on-module (one or the other) NVIDIA Jetson AGX Orin 32GB ( reComputer Mini J5011 model) CPU – 8-core Arm Cortex-A78AE v8.2 64-bit processor @ 2.2 GHz with 2MB L2 + 4MB L3 cache GPU and AI NVIDIA Ampere architecture with 1792 NVIDIA CUDA cores and 56 Tensor Cores @ 930 MHz DL Accelerator – 2x NVDLA Engines @ up to 1.4 GHz Up to 200 TOPS Video Encode – 1x 4K60 | 3x 4K30 | 7x 1080p60 (HEVC) Video Decode – 1x 8K30 | 3x 4K60 | 7x 4K30 | 11x 1080p60 (HEVC) System memory – 32GB 256-bit LPDDR5 (204.8 GB/s) Storage – 64GB eMMC 5.1 flash NVIDIA Jetson AGX Orin 64GB ( reComputer Mini J5012 model) CPU – 12-core Arm Cortex-A78AE v8.2 64-bit processor @ 2.2 GHz with 3MB L2 + 6MB L3 cache GPU and AI NVIDIA Ampere architecture with 2048 NVIDIA CUDA cores and 64 Tensor Cores @ 1.3 GHz DL Accelerator – 2x NVDLA Engines @ up to 1.6 GHz Up to 275 TOPS Video Encode – 2x 4K60 | 4x 4K30 | 8x 1080p60 (HEVC) Video Decode – 1x 8K30 | 3x 4K60 | 7x 4K30 | 11x 1080p60 (HEVC) System memory – 64GB 256-bit LPDDR5 (204.8 GB/s) Storage – 64GB eMMC 5.1 flash
NVIDIA Jetson AGX Orin 32GB ( reComputer Mini J5011 model) CPU – 8-core Arm Cortex-A78AE v8.2 64-bit processor @ 2.2 GHz with 2MB L2 + 4MB L3 cache GPU and AI NVIDIA Ampere architecture with 1792 NVIDIA CUDA cores and 56 Tensor Cores @ 930 MHz DL Accelerator – 2x NVDLA Engines @ up to 1.4 GHz Up to 200 TOPS Video Encode – 1x 4K60 | 3x 4K30 | 7x 1080p60 (HEVC) Video Decode – 1x 8K30 | 3x 4K60 | 7x 4K30 | 11x 1080p60 (HEVC) System memory – 32GB 256-bit LPDDR5 (204.8 GB/s) Storage – 64GB eMMC 5.1 flash
CPU – 8-core Arm Cortex-A78AE v8.2 64-bit processor @ 2.2 GHz with 2MB L2 + 4MB L3 cache
Storage – 128GB NVMe SSD connected to M.2 Key M slot
Camera – 8x GMSL2 via 2x FAKRA connectors using MAX96712 deserializers
Networking 10GbE RJ45 port Gigabit Ethernet RJ45 port Optional WiFi and Bluetooth via M.2 Key-E slot (RTL8822CE Wireless NIC officially supports)
