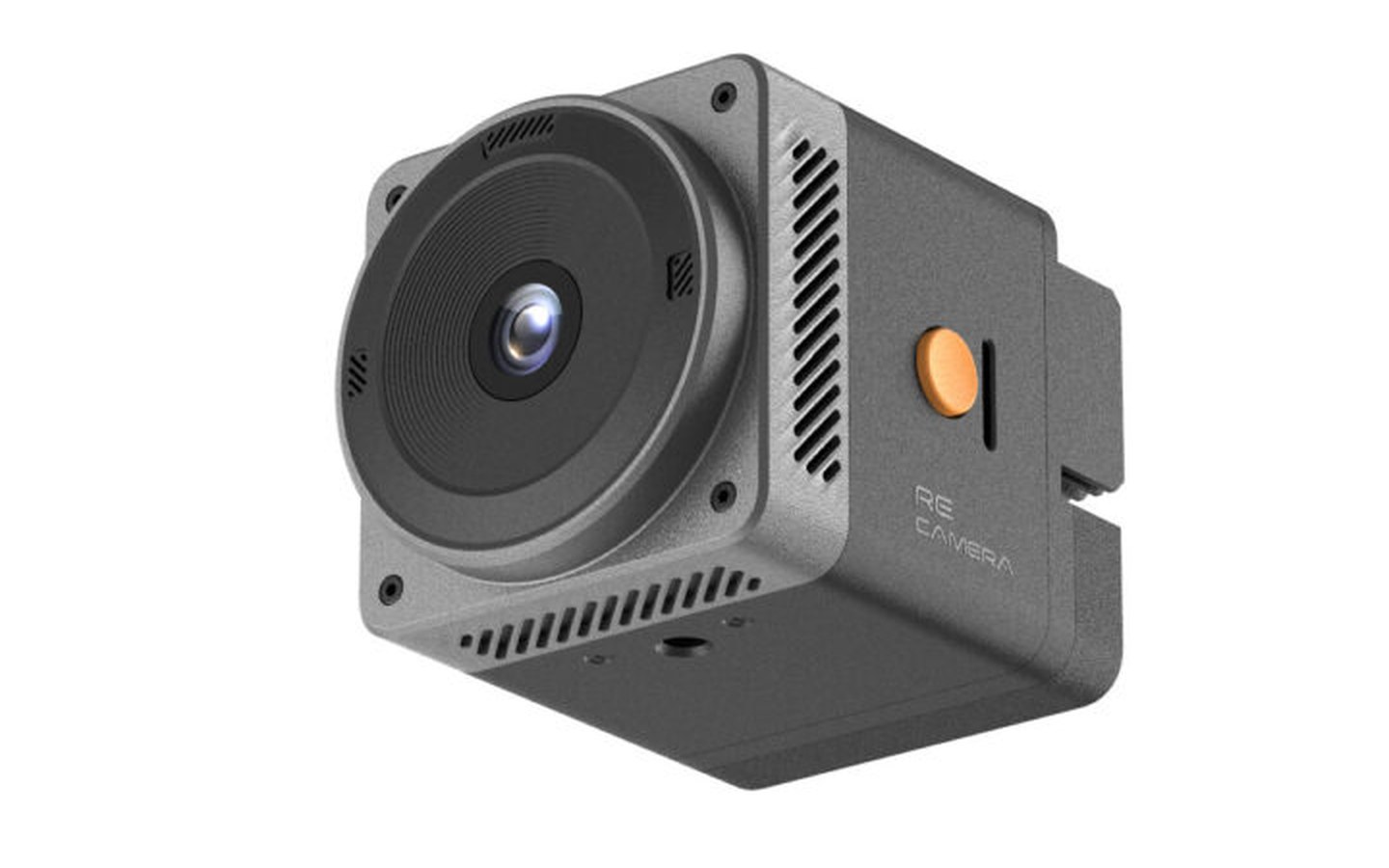

Seeed Studio’s reCamera Pro is an AI camera powered by a Rockchip RV1126B quad-core Cortex-A53 SoC with a 3 TOPS NPU for on-device AI vision, but also large language models (LLMs), vision language models (VLMs), as well as speech-to-text (STT) and text-to-speech (TTS) with built-in audio capabilities.
It offers a powerful update to the earlier reCamera modular AI camera based on an SG2002 RISC-V AI SoC , with up to 4GB RAM, 16GB eMMC flash, an 8MP camera sensor supporting up to 4K @ 30 FPS, an M12 lens mount, a built-in 1W speaker, two microphones, Gigabit Ethernet with PoE, dual-band WiFi 5 connectivity, a USB-C port for power and data, and and expansion through a GPIO and MIPI DSI connectors.
SoC – Rockchip RV1126B CPU – Quad-core Arm Cortex-A53 up to 1.2 GHz with 32KB L1 I-Cache and 32KB L1 D-Cache, unified 512KB L2 Cache MCU – RISC-V MCU as co-processor GPU – 2D graphics engine VPU Video decoder – H.265/H.264 up to 3840×2160 @ 45 FPS Video encoder – H.265, H.264, JPEG up to 12Mbps @ 30 FPS JPEG decoder AI accelerator – Rockchip NPU engine up to 3 TOPS (INT8); supports INT4, INT8, INT16, and FP16 models; TensorFlow, ONNX, PyTorch, and Caffe frameworks.
CPU – Quad-core Arm Cortex-A53 up to 1.2 GHz with 32KB L1 I-Cache and 32KB L1 D-Cache, unified 512KB L2 Cache
VPU Video decoder – H.265/H.264 up to 3840×2160 @ 45 FPS Video encoder – H.265, H.264, JPEG up to 12Mbps @ 30 FPS JPEG decoder
Storage 16GB eMMC flash MicroSD card slot
Built-in camera 8MP SC850SL sensor Optical Format – 1/1.8-inch, starlight-level Pixel Size – 2.0μm Resolution – Up to 3840×2160 Max Frame rate – 30FPS @ 4K resolution Output format – RAW, MP4, (M)JPG Lens mount – M12 x 0.5mm Focal Length – 2.75mm Aperture – F2.4 FOV – 123°±5° Focus range — 0.6 m ~ ∞ Hyperfocal distance — 2.7 m
Optical Format – 1/1.8-inch, starlight-level
