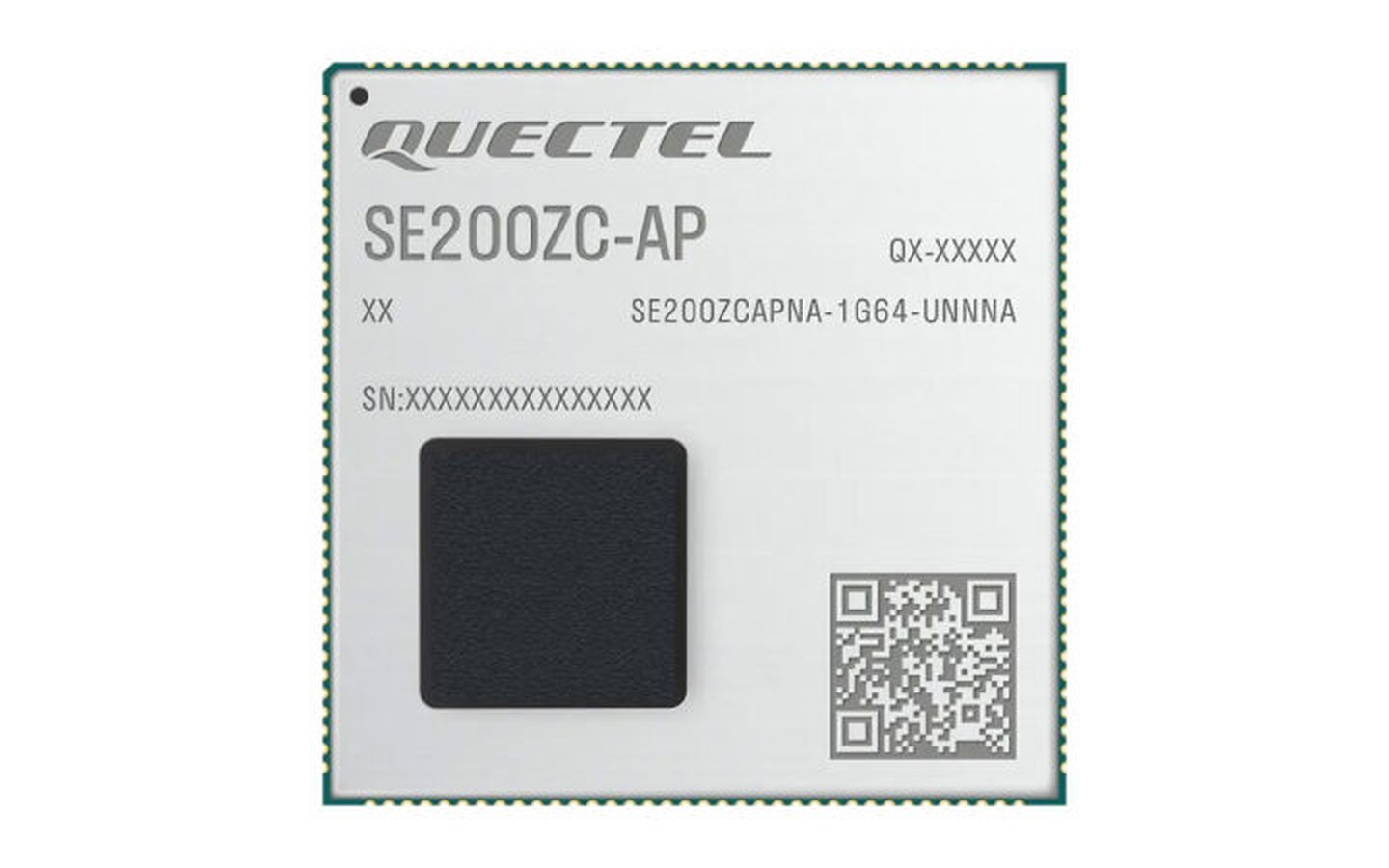

Quectel has launched the SE200ZC-AP, a compact (40 x 40 mm) smart module based on the Rockchip RV1126B/RV1126BJ quad-core Arm Cortex-A53 SoC with a 12MP ISP, an 8MP AI-ISP, and a 3 TOPS NPU.
The module supports up to five 12MP cameras through two 4-lane MIPI CSI interfaces and one DVP interface. Other interfaces include Gigabit Ethernet, USB 3.0/2.0, two CAN FD, up to eight UART, six I2C, two SPI, two SDIO, three SAI, 22 ADC, 28 PWM, and up to 115 GPIOs. It ships with 1GB, 2GB, or 4GB LPDDR4x and 64GB eMMC flash, and is available in commercial and industrial grades, with operating temperatures of -25°C to +75°C and -35°C to +80°C, respectively. These features make it suitable for smart security, industrial automation, autonomous vehicles, robotic vision, and Smart Home applications.
SoC – R ockchip RV1126B or RV1126BJ (industrial-grade version) CPU – Quad-core Arm Cortex-A53 up to 1.6 GHz with 32KB L1 I-Cache and 32KB L1 D-Cache, unified 512KB L2 Cache GPU – 2D Graphics Engine VPU Video Decoder – H.265/H.264 up to 3840×2160 @ 30 FPS Video Encoder – H.265, H.264, JPEG up to 3840×2160 @ 45 FPS JPEG Decoder AI accelerator – Rockchip NPU engine up to 3 TOPS (INT8); supports INT4, INT8, INT16, and FP16 models; TensorFlow, ONNX, PyTorch, and Caffe frameworks.
CPU – Quad-core Arm Cortex-A53 up to 1.6 GHz with 32KB L1 I-Cache and 32KB L1 D-Cache, unified 512KB L2 Cache
VPU Video Decoder – H.265/H.264 up to 3840×2160 @ 30 FPS Video Encoder – H.265, H.264, JPEG up to 3840×2160 @ 45 FPS JPEG Decoder
LLC + LGA design with Storage – 2x SDIO for SD or microSD card support Display I/F 4-lane MIPI DSI up to 1920×1080 @ 60fps LCDC multiplexed interface Camera I/F – Up to 5x cameras via 2x 4-lane MIPI CSI D-PHY v1.2 (can be split into 2x 2-lane + 2x 2-lane) 1x DVP (Max 12 MP @ 30fps per camera) Audio – 3x SAI (Serial Audio Interface), 1x PDM (up to 8 channels), 2x DSM, 2x MIC Networking 1x GMAC supporting Gigabit Ethernet or Fast Ethernet PHY Supports external Quectel Cat 4/1, 4G, Voice, Wi-Fi 6, and GNSS modules. USB – USB 3.0 (OTG), USB 2.0 (Host) Serial – Up to 8x UART Other I/O – Up to 115x GPIOs, 6x I2C, 22x ADC, 2x SPI, 3x PWM, 2x CAN FD, , Keypad interface Misc – PWRKEY and RESET_N Pins
Storage – 2x SDIO for SD or microSD card support
Display I/F 4-lane MIPI DSI up to 1920×1080 @ 60fps LCDC multiplexed interface
