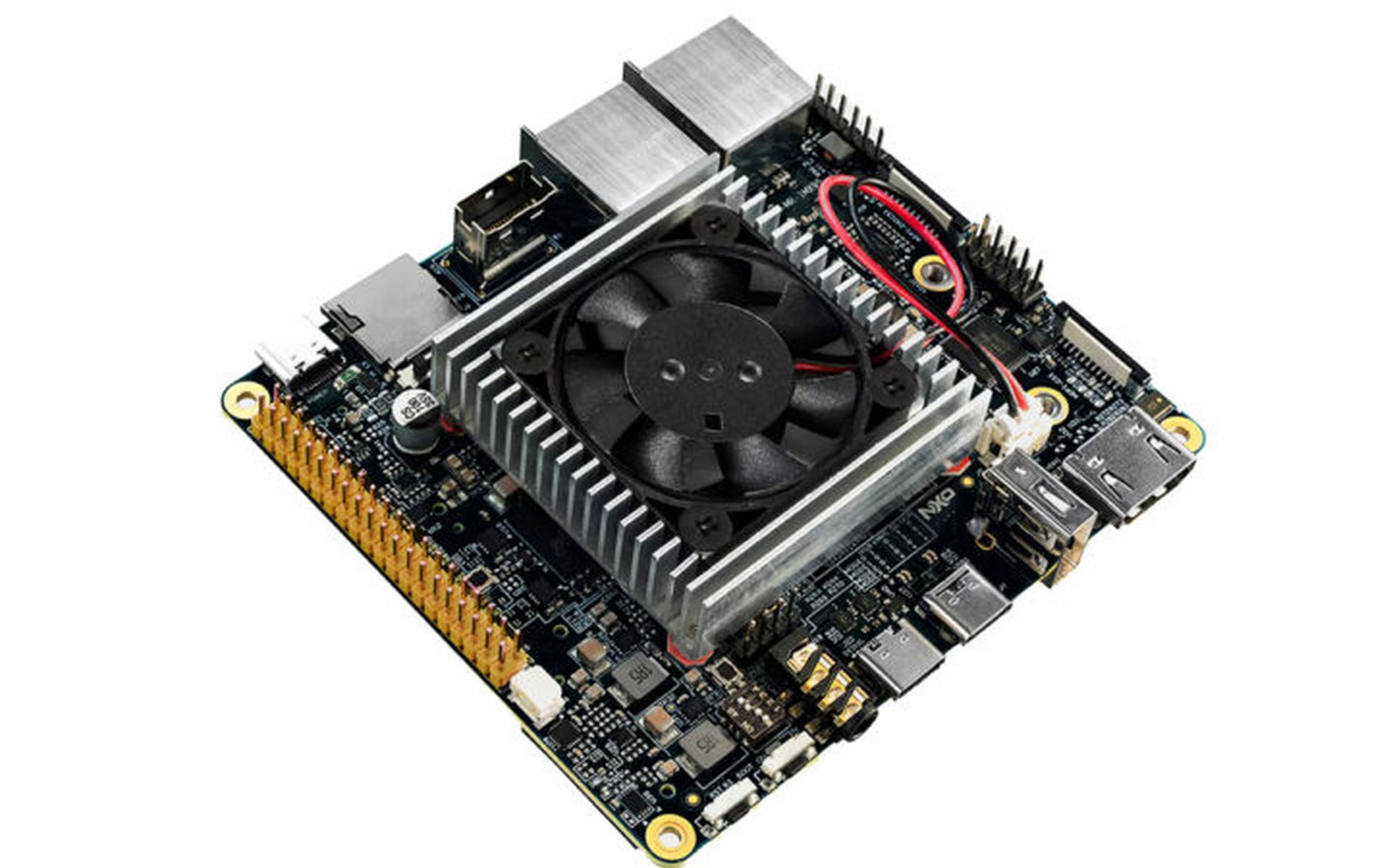

NXP has introduced the FRDM-IMX95-PRO, a compact development board based on the i.MX 95 application processor in the larger 19×19 mm package. It features a 10GbE interface, Wi-Fi 6, Bluetooth 5.4, and 802.15.4 tri-radio connectivity, and two M.2 Key-M slots for AI accelerator cards or SSDs.
The board also comes with 16 GB LPDDR5-6400 memory, a 32 GB eMMC flash, and NXP’s GoPoint demo interface for robotics, industrial networking, and vision processing applications.
SoC – NXP i.MX 95 CPU Up to 6x Arm Cortex-A55 application cores clocked at 1.8/2.0 GHz with 32KB I-cache and D-cache, 64KB L2 cache, and 512KB L3 cache 1x Arm Cortex-M7 real-time core clocked at 800 MHz 1x Arm Cortex-M33 safety core clocked at 333 MHz GPU – Arm Mali-G310 V2 GPU for 2D/3D acceleration with support for OpenGL ES 3.2, OpenCL 3.0 VPU 1080p60/4Kp30 H.265 and H.264 encode and decode JPEG Encoder, JPEG Decoder Decoding – 4Kp30/1080p60 HEVC/H.265, VP9, VP8, AVC/H.264 (Baseline / Main / High Profile) Encoding – 4Kp30/1080p60 HEVC/H.265, AVC/H.264 AI Accelerator – NXP eIQ Neutron 8 eTOPS neural processing unit (NPU)
CPU Up to 6x Arm Cortex-A55 application cores clocked at 1.8/2.0 GHz with 32KB I-cache and D-cache, 64KB L2 cache, and 512KB L3 cache 1x Arm Cortex-M7 real-time core clocked at 800 MHz 1x Arm Cortex-M33 safety core clocked at 333 MHz
Up to 6x Arm Cortex-A55 application cores clocked at 1.8/2.0 GHz with 32KB I-cache and D-cache, 64KB L2 cache, and 512KB L3 cache
System Memory – 16 GB 32-bit LPDDR5 memory @ 6400MT/s
Storage 32 GB eMMC 5.1 onboard storage 512 Mbit QSPI FLASH MicroSD 3.0 card slot 2x M.2 Key-M slots for SSDs and AI accelerator cards
2x M.2 Key-M slots for SSDs and AI accelerator cards
