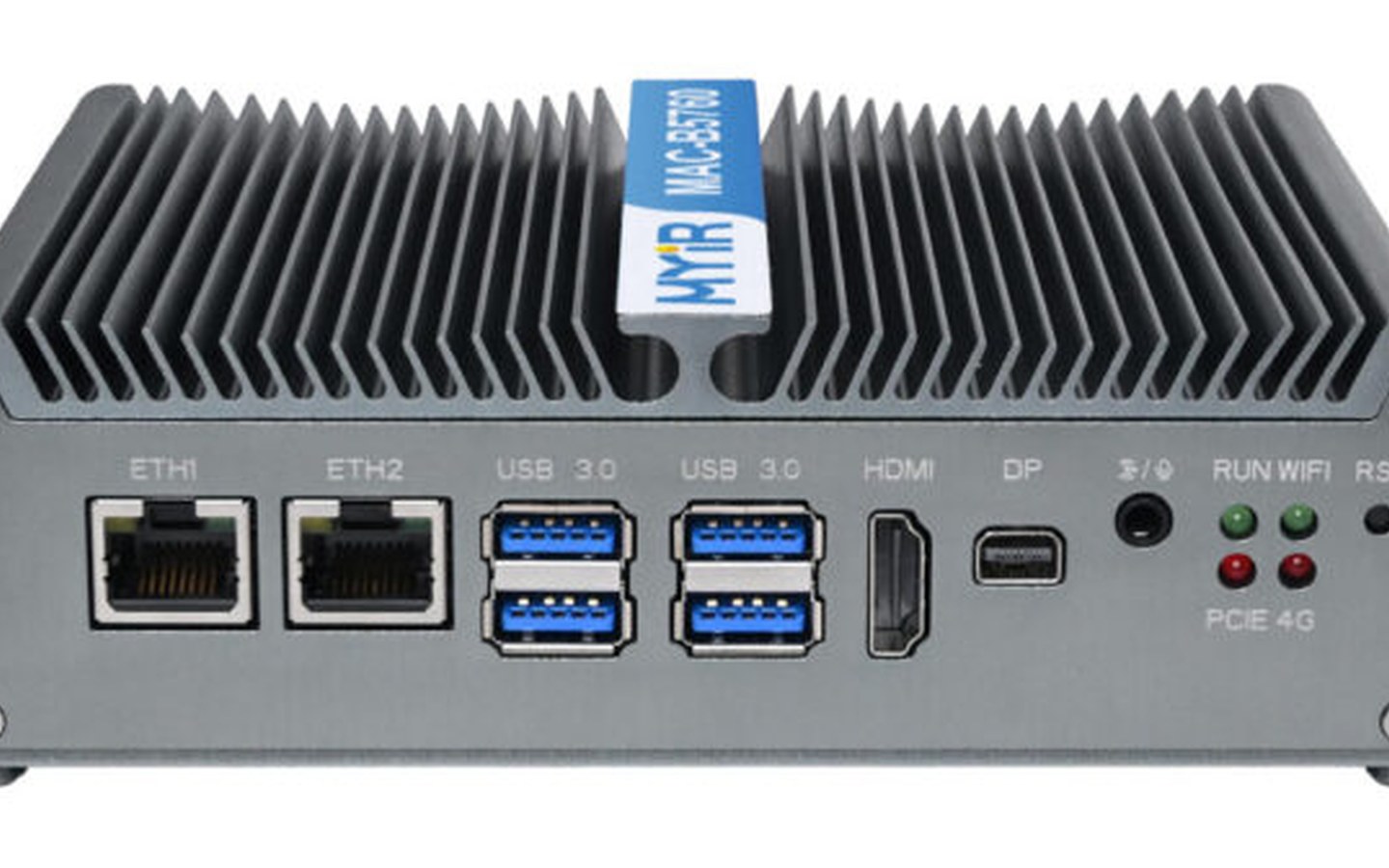

MYiR MAC-B5760 is a fanless Edge AI industrial box PC powered by a Rockchip RK3576 SoC with a built-in 6 TOPs NPU, and equipped with 8GB LPDDR5 and 64GB flash by default.
The embedded system offers two Gigabit Ethernet ports, four USB 3.0 ports, HDMI and mini DP video outputs, a 3.5mm audio jack, a USB-C port for convenient serial console access, an optional WiFi 6 and Bluetooth 5.4 module, and expansion capability through an M.2 socket for NVMe SSD or AI accelerator, and a mini PCIe socket to add 4G LTE/5G cellular connectivity.
SoC – Rockchip RK3576 CPU 4x Cortex-A72 cores @ 2.2GHz, four Cortex-A53 cores @ 1.8GHz Arm Cortex-M0 MCU at 400MHz GPU – ARM Mali-G52 MC3 GPU with support for OpenGL ES 1.1, 2.0 and 3.2, OpenCL up to 2.0 and Vulkan 1.1 NPU – 6 TOPS (INT8) AI accelerator with support for INT4, INT8, INT16, BF16, and TF32 mixed operations. VPU Video Decoder: H.264, H.265, VP9, AV1, and AVS2 up to 8K @ 30fps or 4K @ 120fps Video Encoder: H.264 and H.265 up to 4K @ 60fps, (M)JPEG encoder/decoder up to 4K @ 60fps
CPU 4x Cortex-A72 cores @ 2.2GHz, four Cortex-A53 cores @ 1.8GHz Arm Cortex-M0 MCU at 400MHz
4x Cortex-A72 cores @ 2.2GHz, four Cortex-A53 cores @ 1.8GHz
System Memory – 8GB LPDDR5 (4GB as option)
Storage 64GB eMMC flash (32GB capacity or 128GB UFS available as options) 4KB EEPROM MicroSD card slot NVMe SSD via M.2 (PCIe) M-Key 2280 slot
64GB eMMC flash (32GB capacity or 128GB UFS available as options)
