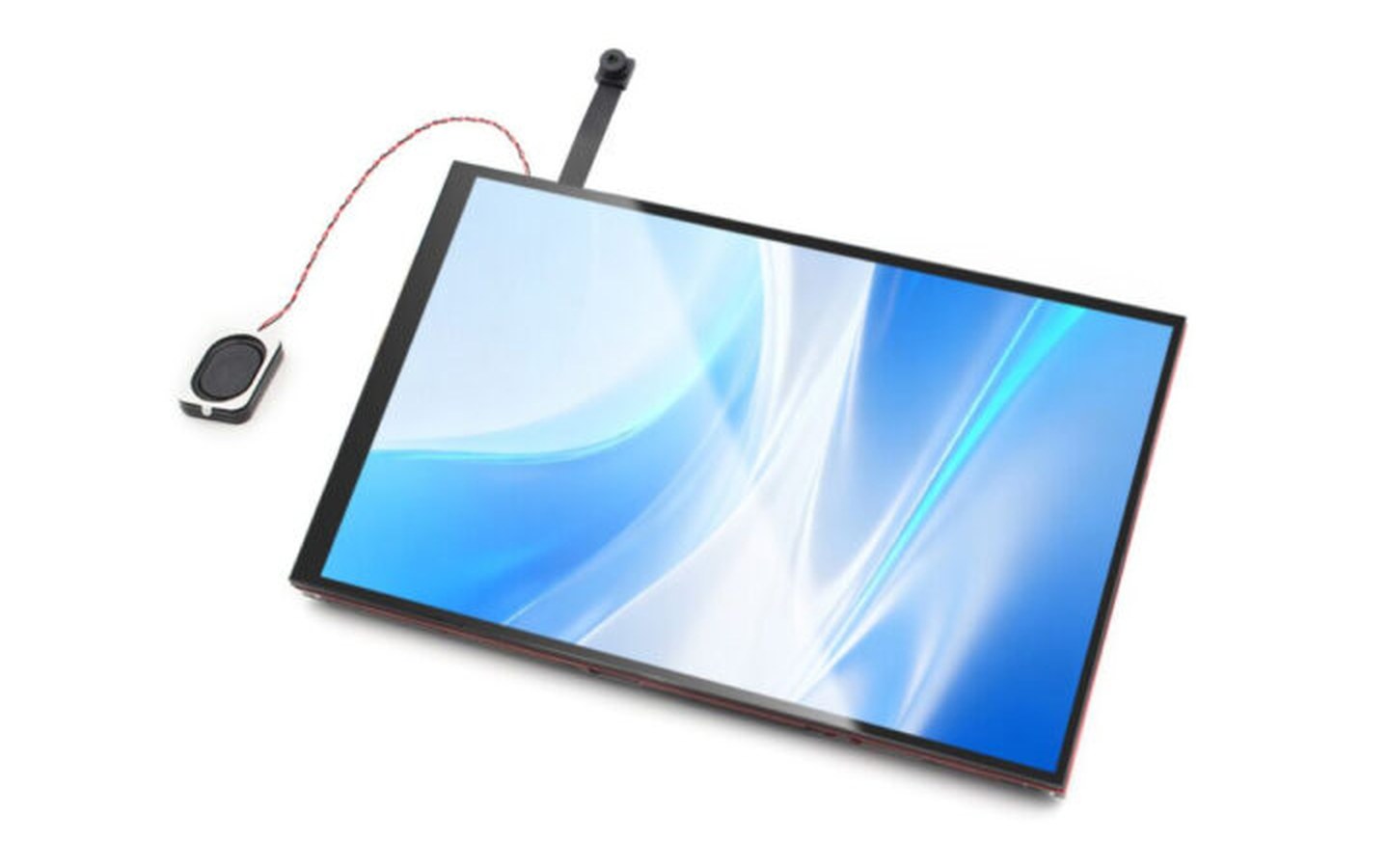

Makerfabs MaTouch ESP32-P4 TFTTouch 10.1 MIPI with 4G LTE is an ESP32-P4 + ESP32-C6-based display development platform for HMI edge AI, and connected embedded applications. The development board features a 10.1-inch IPS LCD, very similar to those of Seeed Studio’s reTerminal D1001 , Waveshare ESP32-P4-WIFI6-Touch-LCD, and CrowPanel Advanced 7-inch displays.
However, what makes it unique compared to other devices is that it also features a SIM7670G 4G LTE modem with a SIM card slot, an RJ45 Ethernet jack, and a 2MP camera. The HMI display also comes with microphone and speaker connectors, a microSD card slot, various USB interfaces, lithium battery support, and two 2.54 mm pitch GPIO expansion headers exposing UART, I2C, SPI, and other peripheral interfaces. All these features make it suitable for HMI, edge AI, and connected embedded applications.
Makerfabs MaTouch ESP32-P4 10.1-inch 4G LTE specifications:
SoC – Espressif Systems ESP32-P4NRW32 CPU Dual-core 32-bit RISC-V HP (High-performance) CPU @ up to 400 MHz with AI instructions extension and single-precision FPU Single-RISC-V LP (Low-power) MCU core @ up to 40 MHz Memory 768 KB HP L2MEM (for dual-core CPU), 32 KB LP SRAM, 8 KB TCM (for LP MCU core) 32MB PSRAM Storage – 128 KB HP ROM, 16 KB LP ROM GPU – 2D Pixel Processing Accelerator (PPA) VPU – H.264 and JPEG codecs support
CPU Dual-core 32-bit RISC-V HP (High-performance) CPU @ up to 400 MHz with AI instructions extension and single-precision FPU Single-RISC-V LP (Low-power) MCU core @ up to 40 MHz
Storage 16MB QSPI NOR Flash MicroSD card slot
Display 10.1-inch IPS LCD, 1280×800 resolution MIPI DSI interface (JD9365 LCD driver) 10-point capacitive touchscreen (GSL3680 touch driver)
10-point capacitive touchscreen (GSL3680 touch driver)
