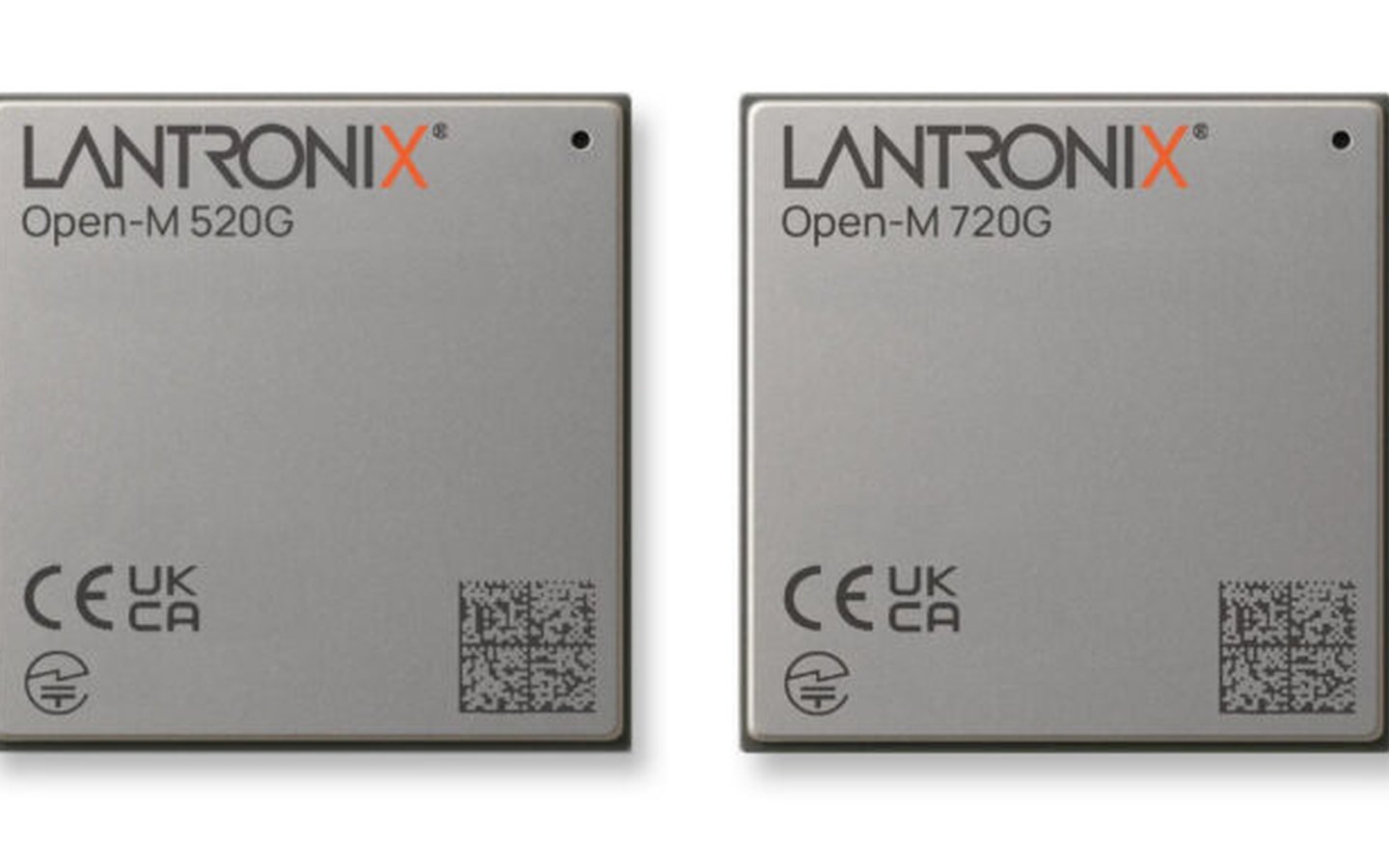

Lantronix Open-M 720G and 520G are compact (43x44mm) LGA system-on-modules (SoM) powered by 6nm MediaTek Genio 720 and Genio 520 SoCs, offering an AI performance of 10 TOPS, and designed for Edge IoT applications running low-power Vision AI and GenAI tasks.
The Genio 720 dual-camera module ships with 8GB LPDDR5 and the Genio 520 single-camera module with 4GB LPDDR5. Both offer 128GB UFS storage, Gigabit Ethernet, optional WiFi 6 and Bluetooth 5.3 connectivity, dual display support, audio inputs/outputs, USB 3.2/2.0 interfaces, PCIe Gen2 x1, and more.
Lantronix Open-M 720G/520G specifications:
SoC (one or the other) MediaTek Genio 520 (MT8371) CPU – 2x Cortex-A78 up to 2.2GHz, 6x Cortex-A55 up to 2.0 GHz GPU – Arm Mali-G57 MC2 up to 880 MHz VPU Video Decode – Up to 1920 x 1200 @ 60fps Video Encode – Up to 1920 x 1200 @ 60fps ISP – 1x ISP NPU – NPU850 AI accelerator up to 10 TOPS MediaTeck Genio 720 (MT8391) CPU – 2x Cortex-A78 up to 2.6 GHz , 6x Cortex-A55 up to 2.0 GHz GPU – Arm Mali-G57 MC2 up to 1.1 GHz VPU Video Decode – Up to 1920 x 1200 @ 60fps Video Encoder – Up to 1920 x 1200 @ 60fps ISP – 2x ISP NPU – NPU850 AI accelerator up to 9 TOPS
MediaTek Genio 520 (MT8371) CPU – 2x Cortex-A78 up to 2.2GHz, 6x Cortex-A55 up to 2.0 GHz GPU – Arm Mali-G57 MC2 up to 880 MHz VPU Video Decode – Up to 1920 x 1200 @ 60fps Video Encode – Up to 1920 x 1200 @ 60fps ISP – 1x ISP NPU – NPU850 AI accelerator up to 10 TOPS
System Memory – 4GB ( Genio 520 ) or 8GB ( Genio 720 ) LPDDR5
Wireless – Optional Wi-Fi 6/6E and Bluetooth 5.x
LGA pads Storage – SD card interface Display Interfaces 4-lane MIPI DSI 4-lane eDP, 4-lane DP (multiplexed with USB3.0) 4-lane LVDS (multiplexed with DSI) Single display – Up to 5120 x 2160 @ 60 fps, or 3840 x 2160 @ 60 fps, 2560 x 1600 @ 120 fps Dual displays – Up to 2560 x 1600 @ 60 fps Supports capacitive touch panel controlled by I2C Camera Interfaces 2x 4-lane MIPI-CSI, up to 2.5 Gbps/lane Genio 520 – Single camera, single ISP, up to 16 MP Genio 720 – Supports 2 cameras, dual ISP, up to 16 MP + 16 MP @ 30 fps camera Audio 3x analog output – Line-out, earpiece, headphone 3x analog input – MIC0, MIC1 (earpiece), MIC2 I2S/PCM Networking – Gigabit Ethernet USB – 3x USB 3.2, 3x USB 2.0 PCIe – PCIe Gen2 x1 Other I/Os – 4x UART, ADC, I2C, SPI, GPIOs, SDIO
