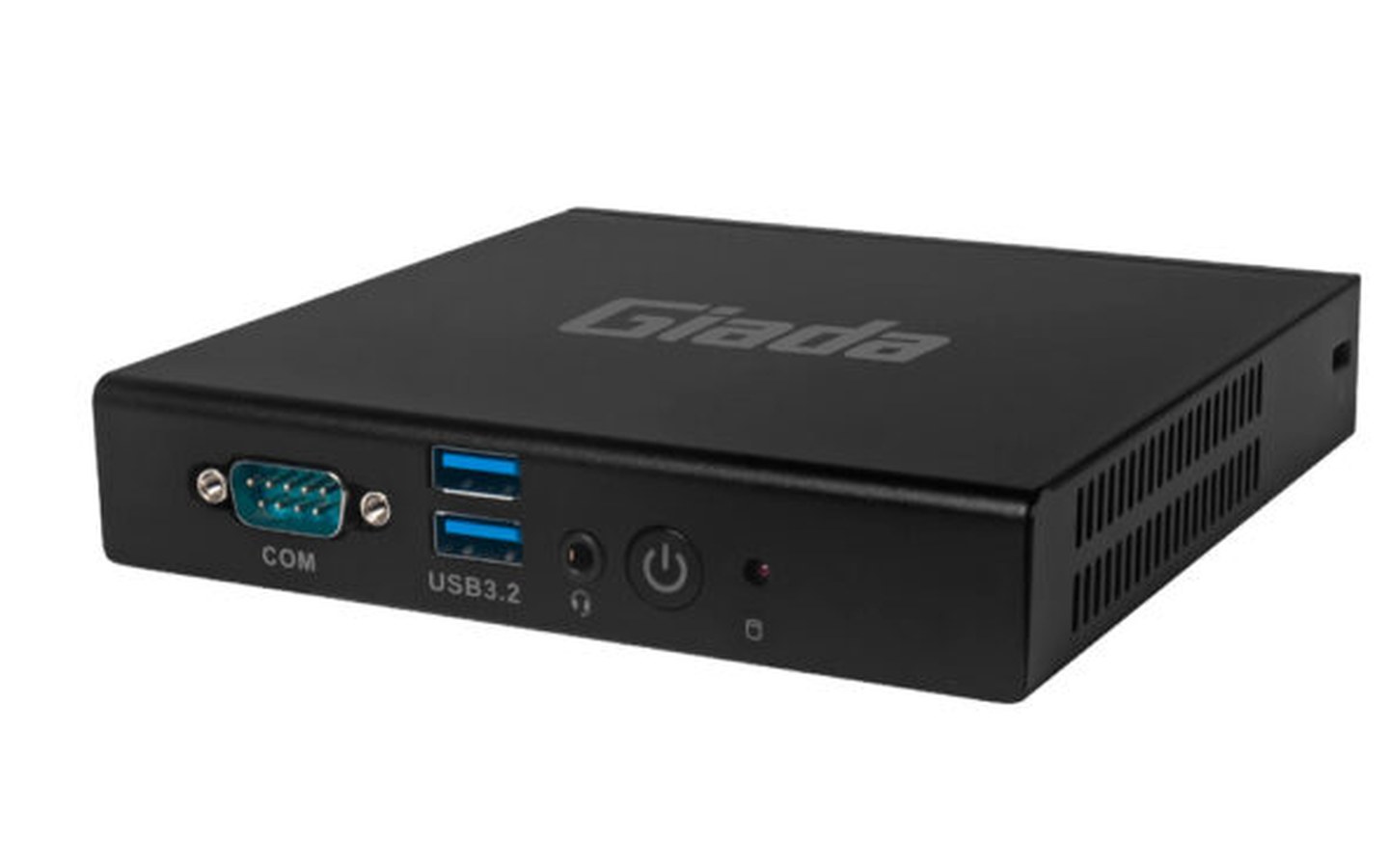

Giada DK320 is an ultra-compact Wildcat Lake mini PC powered by up to an Intel Core 5 315 hexa-core processor and designed for digital signage, edge computing, and embedded applications requiring real-time analytics, intelligent monitoring, and automated decision-making.
The system supports up to 48GB DDR5 RAM and M.2 2240/2280 NVMe storage, and offers dual 4K-capable HDMI video output, 2.5GbE networking, an optional WiFi 5/6/7 and Bluetooth module, an RS232 COM port, and four USB 3.2 ports.
Wildcat Lake SoC (one or the other) Intel Core 3 304 5-core CPU – 1x P-cores @ 1.5/4.3 GHz (Turbo) + 4x LPE-cores @ 1.4/3.3 GHz (Turbo) GPU – 1-core Intel Xe3 Graphics @ 2.3 GHz (9 TOPS) NPU – 15 TOPS Intel Core 5 315 6-core CPU – 2x P-cores @ 1.5/4.4 GHz (Turbo) + 4x LPE-cores @ 1.4/3.3 GHz (Turbo) GPU – 2-core Intel Xe3 Graphics @ 2.3 GHz (18 TOPS) NPU – 15 TOPS Common features – 15W PBP, 6 MB Intel Smart Cache
Intel Core 3 304 5-core CPU – 1x P-cores @ 1.5/4.3 GHz (Turbo) + 4x LPE-cores @ 1.4/3.3 GHz (Turbo) GPU – 1-core Intel Xe3 Graphics @ 2.3 GHz (9 TOPS) NPU – 15 TOPS
5-core CPU – 1x P-cores @ 1.5/4.3 GHz (Turbo) + 4x LPE-cores @ 1.4/3.3 GHz (Turbo)
System Memory – Up to 48GB DDR5-6400 via single SO-DIMM slot; CNXSoft note: 64GB likely supported
Storage – M.2 (2242/2280) PCIe4.0 x4 socket for SSD
Video Output – 2x HDMI 2.1 ports up to 4096 x 2304 @ 60 Hz
