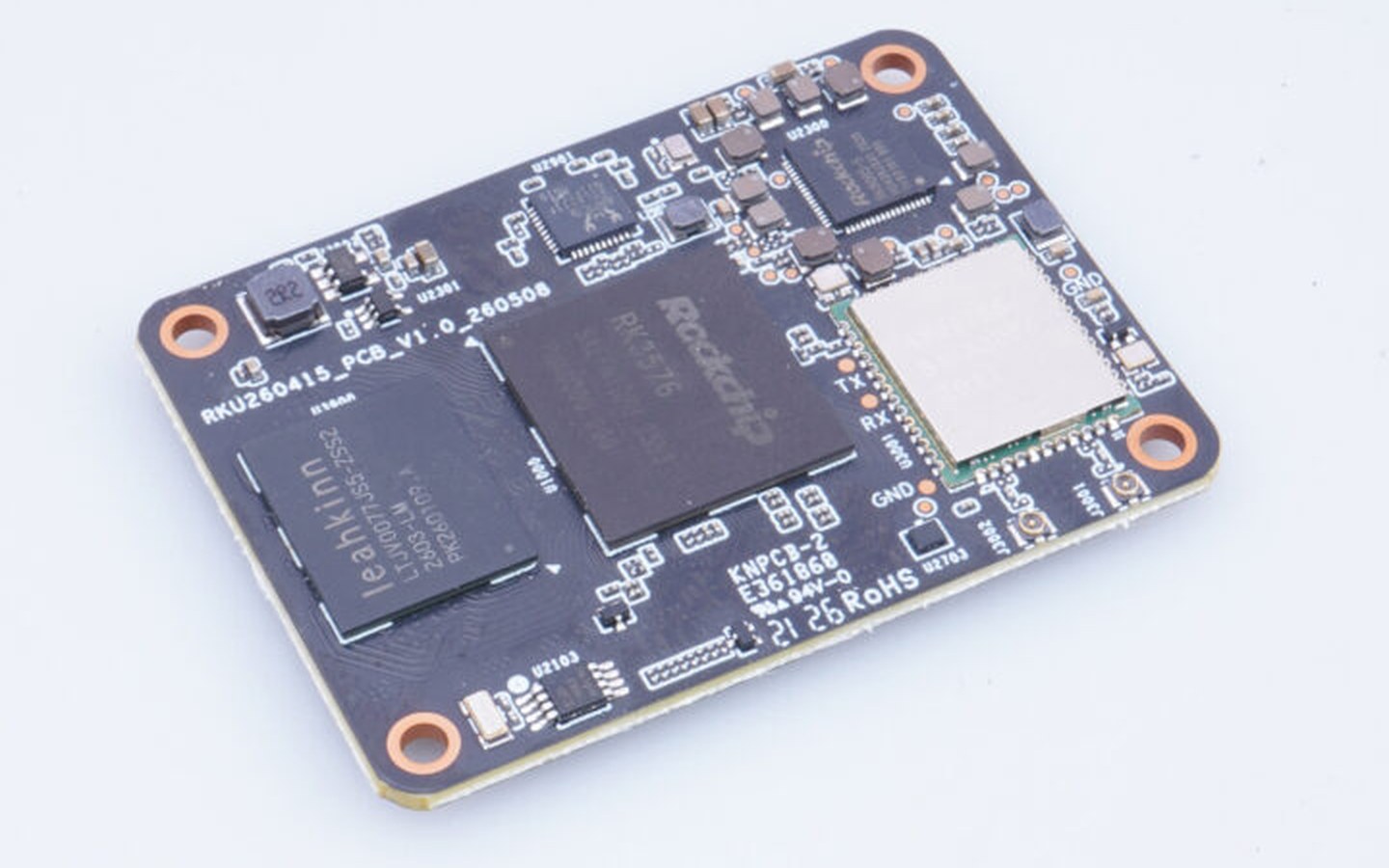

Geniatech XPI-3576-CM5 is a Rockchip RK3576 octa-core Arm Cortex-A72/A53 system-on-module based on the Raspberry Pi CM4/CM5 form factor with up to 16GB LPDDR5 and 128GB eMMC flash.
The module also features a RealTek RTL8211F Gigabit Ethernet controller, an Ampak AP6275S wireless module for dual-band WiFi 6 and Bluetooth 5.3 connectivity, and a Rockchip RK806S-5 PMIC for power management. It features two 100-pin B2B connectors, allowing it to be plugged into carrier boards designed for the Raspberry Pi CM4/CM5, with some limitations as we’ll see further below.
SoC – Rockchip RK3576 Octa-core CPU – 4x Cortex-A72 cores at 2.2GHz, 4x Cortex-A53 cores at 1.8GHz GPU – Arm Mali-G52 MC3 GPU at 1 GHz with support for OpenGL ES 3.2, OpenCL 2.0, and Vulkan 1.1 NPU – 6 TOPS (INT8) AI accelerator with support for INT4/INT8/INT16/BF16/TF32 mixed operations. VPU Video Decoder – H.264, H.265, VP9, AV1, and AVS2 up to 8Kp30 or 4Kp120, MPJEG decoding up to 4Kp60 Video Encoder – H.264, H.265, (M)JPEG up to 4Kp60
Octa-core CPU – 4x Cortex-A72 cores at 2.2GHz, 4x Cortex-A53 cores at 1.8GHz
GPU – Arm Mali-G52 MC3 GPU at 1 GHz with support for OpenGL ES 3.2, OpenCL 2.0, and Vulkan 1.1
System Memory – 4GB (default), 8GB, or 16GB 32-bit LPDDR5
Storage – Optional 32GB (default), 64GB, or 128GB eMMC flash; Lite version has no eMMC flash
Networking RealTek RTL8211F Gigabit Ethernet PHY Dual-band WiFi 6 and Bluetooth 5.3 via Ampak AP6275S module and two U.FL external antenna connectors
