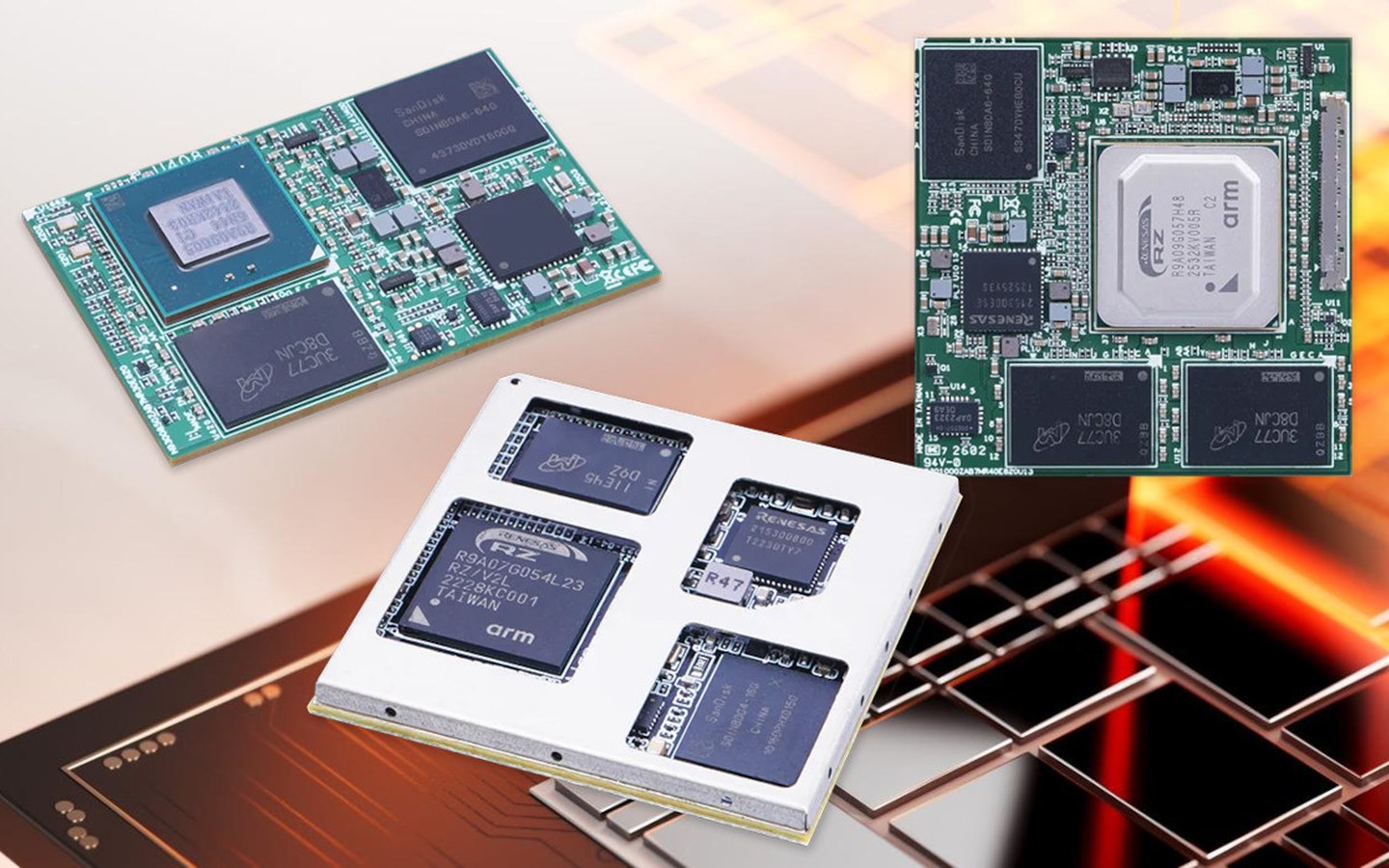

Geniatech launches Renesas RZ/V2N, RZ/V2H, and RZ/V2L OSM Size-M/L system-on-modules
Geniatech has introduced three OSM system-on-modules powered by Renesas RZ/V2N/V2H/V2L Cortex-A55/M33 microprocessors, namely the OSM Size-M (45x35mm)
Condensed by AI-Portable from Editorial queue.
Geniatech has introduced three OSM system-on-modules powered by Renesas RZ/V2N/V2H/V2L Cortex-A55/M33 microprocessors, namely the OSM Size-M (45x35mm) SOM-V2N-OSM , plus the OSM Size-L (45x45mm) SOM-V2H-OSM and SOM-V2L-OSM modules, all designed for Edge AI and computer vision applications.
SoC – Renesas RZ/V2N CPU Quad-core Arm Cortex-A55 @ 1.8 GHz Arm Cortex-M33 @ 200 MHz GPU – Arm Mali-G31 3D graphics engine (GE3D) with OpenGL ES 3.2 and OpenCL 2.0 FP VPU – Encode & decode H.264 – Up to 1920×1080 @ 60 fps (Renesas specs, but SOMDEVICES also mentions up to 4K @ 30 FPS) H.265 – Up to 3840×2160 @ 30 fps AI accelerator – DRP-AI3 up to 4 dense TOPS / 15 sparse TOPS
CPU Quad-core Arm Cortex-A55 @ 1.8 GHz Arm Cortex-M33 @ 200 MHz
GPU – Arm Mali-G31 3D graphics engine (GE3D) with OpenGL ES 3.2 and OpenCL 2.0 FP
VPU – Encode & decode H.264 – Up to 1920×1080 @ 60 fps (Renesas specs, but SOMDEVICES also mentions up to 4K @ 30 FPS) H.265 – Up to 3840×2160 @ 30 fps
The portable AI angle here is not just that Editorial queue published a new item. It is that this material changes how readers should think about portable ai systems in practical terms: what shifts on-device, what still depends on platform or cloud layers, and what kind of user workflow becomes more or less realistic as a result.
From an editorial standpoint, the most useful question is whether this review candidate produces a real behavioral or product constraint change. If the answer is yes, it belongs in AI-Portable because it tells us something about interface friction, local capability, deployment readiness, or the specific work conditions where portable AI may actually land first.
This matters because it touches portable ai through a review candidate signal, which affects real device-side constraints, deployment timing, or product readiness.
Even when the source is directionally useful, the editorial job is to separate confirmed facts from launch framing. Availability, sustained usage evidence, implementation complexity, privacy implications, and integration cost often determine whether a portable AI signal is operationally meaningful or just momentarily interesting.
476 LGA contacts with Display – 4-lane MIPI-DSI Camera – 2x 4-lane MIPI CSI-2 Audio – 2x I²S Networking – 2x Gigabit Ethernet (RGMII) USB – 1x USB OTG, 1x USB 2.0, 1x USB 3.0 PCIe – 1x PCIe Gen3 Low-speed I/Os 5x UART (1x console), 1x SPI 16x GPIO, 4x PWM 2x SDIO 2x CAN Bus Analog – 2x ADC Debugging – JTAG
Networking – 2x Gigabit Ethernet (RGMII)
USB – 1x USB OTG, 1x USB 2.0, 1x USB 3.0
Low-speed I/Os 5x UART (1x console), 1x SPI 16x GPIO, 4x PWM 2x SDIO 2x CAN Bus
