Gateworks Catalina GW9200 NXP i.MX 95 SBC features Flexible Socket Adapter sockets for M.2 or mPCIe modules
Gateworks Catalina GW9200 Edge AI SBC features NXP i.MX 95 SoC, two Flexible Socket Adapter (FSA) sockets for mPCie or M.2 module adapters.
Condensed by AI-Portable from Editorial queue.
Last March , Gateworks introduced the Catalina SBC family, starting with the GW9200 board, based on NXP i.MX 95 SoC for industrial Edge AI applications, and featuring Flexible Socket Adapter (FSA) sockets to accommodate either mini PCIe or M.2 module adapters, depending on requirements.

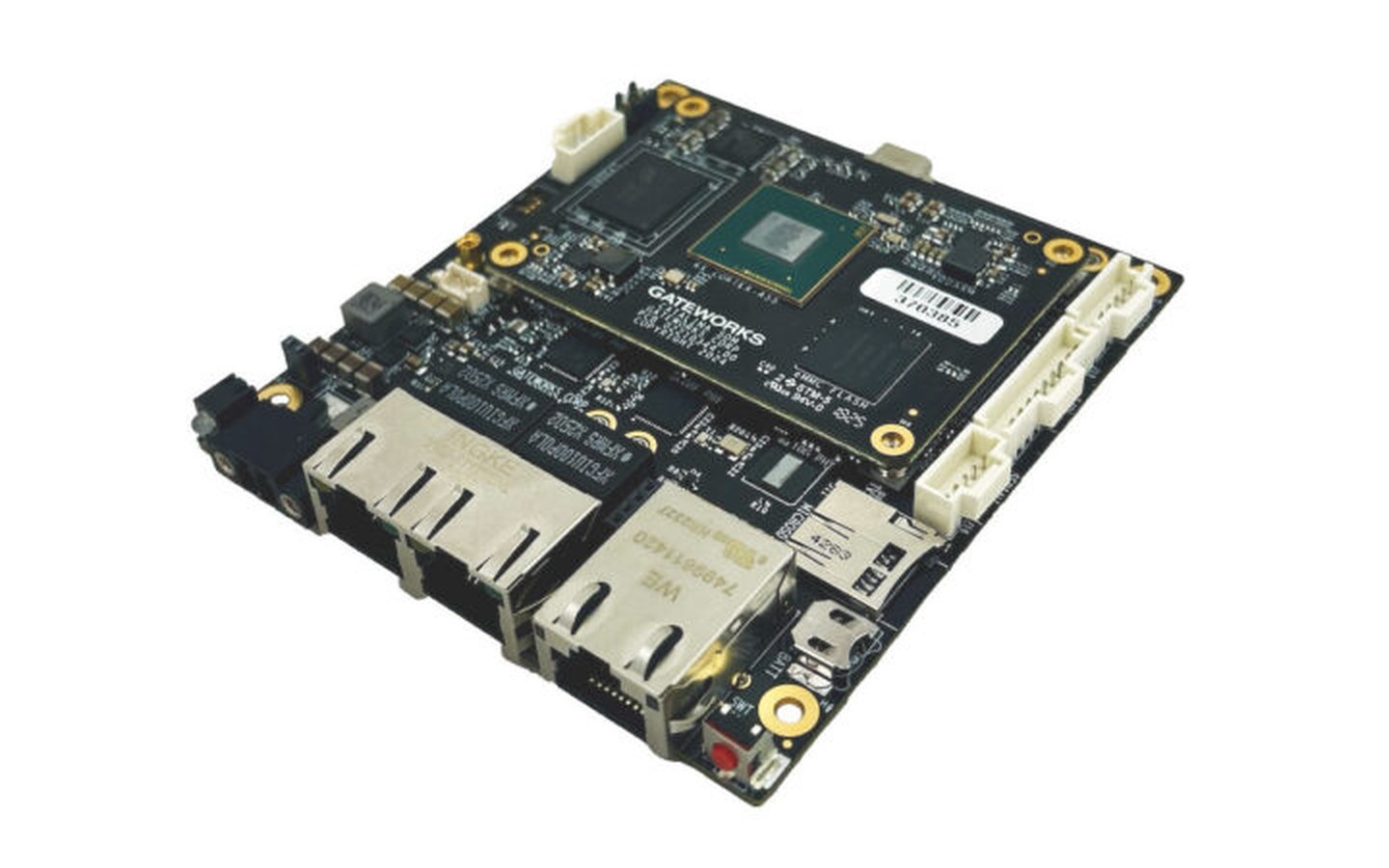

We missed the original announcement, but the new SBC family was brought to our attention when Ezurio announced the acquisition of Gateworks last week. The GW9200 board comprises a system-on-module with the NXP i.MX 95 chip, 4GB LPDDR5 and 8GB eMMC flash by default, as well as a carrier board with 10GbE and GbE RJ45 ports, a MIPI DSI/CSI display/camera interface, two FSA sockets for M.2 or mini PCIe expansion, and a range of I/Os.
Ezurio/Gateworks Catalina GW9200 specifications:
SoC – NXP i.MX 95 CPU Up to 6x Arm Cortex-A55 application cores clocked at 1.8 GHz with 32KB I-cache and D-cache, 64KB L2 cache, and 512KB L3 cache 1x Arm Cortex-M7 real-time core clocked at 800 MHz 1x Arm Cortex-M33 safety core clocked at 333 MHz GPU – Arm Mali-G310 V2 GPU for 2D/3D acceleration with support for OpenGL ES 3.2, OpenCL 3.0 VPU 1080p60/4Kp30 H.265 and H.264 encode and decode JPEG Encoder, JPEG Decoder Decoding – 4Kp30/1080p60 HEVC/H.265, VP9, VP8, AVC/H.264 (Baseline / Main / High Profile) Encoding – 4Kp30/1080p60 HEVC/H.265, AVC/H.264 AI Accelerator – NXP eIQ Neutron 2 TOPS neural processing unit (NPU) with 750 inf/sec
CPU Up to 6x Arm Cortex-A55 application cores clocked at 1.8 GHz with 32KB I-cache and D-cache, 64KB L2 cache, and 512KB L3 cache 1x Arm Cortex-M7 real-time core clocked at 800 MHz 1x Arm Cortex-M33 safety core clocked at 333 MHz
Storage 8GB eMMC flash (up to 64GB) MicroSD card slot
Display/Camera Interface – MIPI DSI or CSI connector
Networking 10GbE RJ45 jack 2x Gigabit Ethernet RJ45 jacks Optional Wi-Fi 6/7 and Bluetooth via Mini PCIe or M.2 adapter in FSA site Optional 4G LTE or 5G module via FSA site plus two nano SIM card slots.
