Forlinx launches Rockchip RK3572 system-on-module (SoM) and development board with Linux 6.12 BSP
We noticed the Rockchip RK3572 mid-range HMI SoC a couple of months ago, and Forlinx has launched the first system-on-module (FET3572-C SoM) based on the
Condensed by AI-Portable from Editorial queue.
We noticed the Rockchip RK3572 mid-range HMI SoC a couple of months ago, and Forlinx has launched the first system-on-module (FET3572-C SoM) based on the processor, along with a development board (OK3572-C) and BSP (Board Support Package) with a fairly recent Linux 6.12 kernel.
The octa-core Cortex-A73/A53 processor features a 4 TOPS NPU ( the same as in the RK3588 ) and targets HMI applications leveraging Edge AI for consumer electronics, industrial control, edge computing, smart security, and in-vehicle terminals.

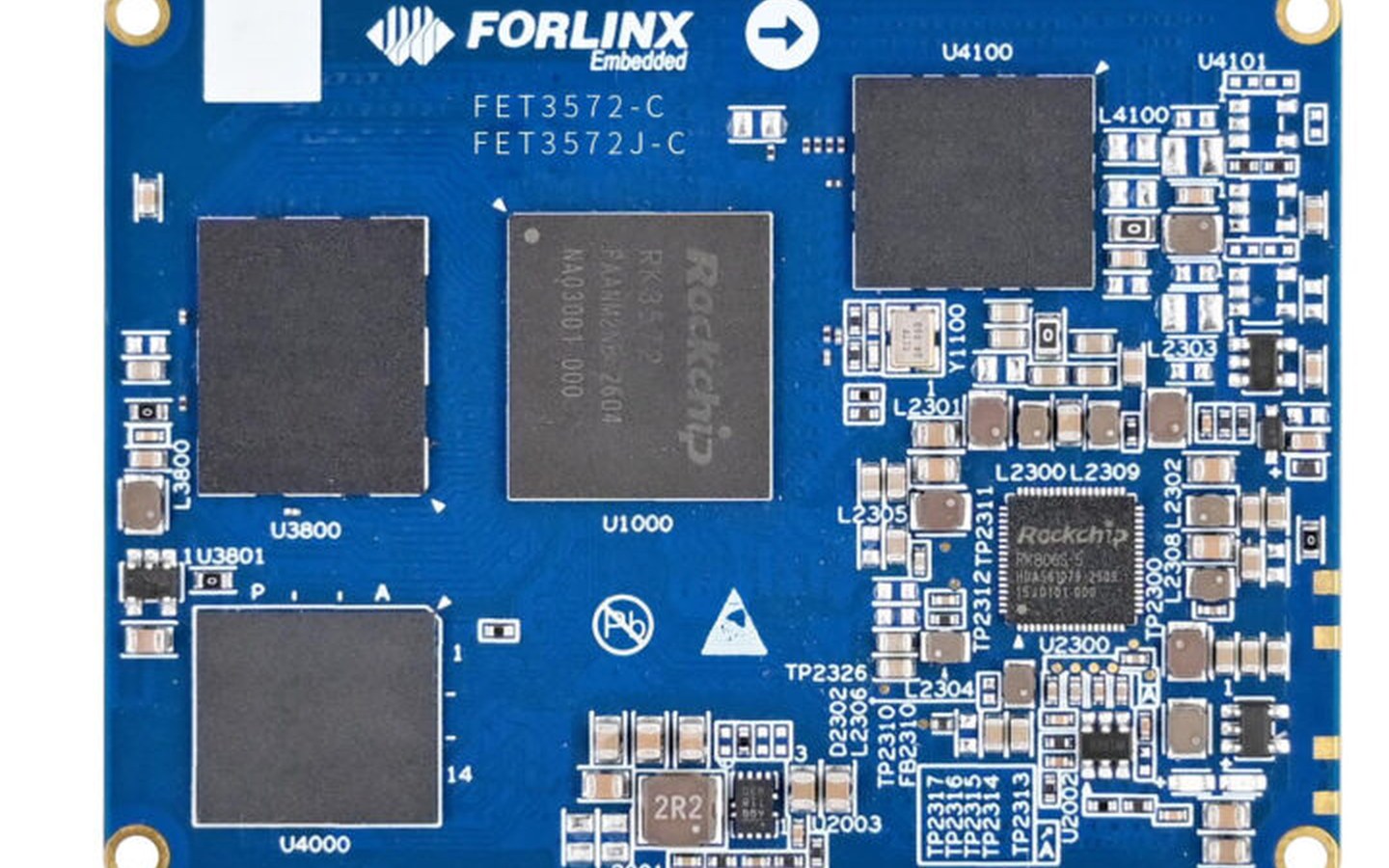

Forlinx FET3572-C Rockchip RK3572 system-on-module
SoC – Rockchip RK3572 or RK3572J Octa-core CPU – 2x Arm Cortex-A73 @ up to 2.2 GHz+ 2x Arm Cortex-A53 @ up to 2.1 GHz + 4x Arm Cortex-A53 @ up to 2.1 GHz GPU – Arm Mali-G310V2 MC1 with support for OpenGL ES 1.1/2.0/3.2, OpenCL 3.0, and Vulkan 1.4 VPU Hardware Encoding -H.264, H265, 4K @ 60fps Hardware Decoding – H.264, H.265, VP9, AV1, AVS2, 8K @ 30fps or 4K @ 120fps AI accelerator – 4 TOPS (INT8) NPU with support for INT4/INT8/INT16/FP4/FP8/FP16/BF16 Process – 8nm
Octa-core CPU – 2x Arm Cortex-A73 @ up to 2.2 GHz+ 2x Arm Cortex-A53 @ up to 2.1 GHz + 4x Arm Cortex-A53 @ up to 2.1 GHz
4x 100-pin board-to-board connectors (0.4mm pitch, 1.5mm height) Display HDMI 2.1 or eDP 1.3 Tx up to 4Kp60 4-lane MIPI DSI 1.2 up to 2560 × 1600 @ 60 Hz 8-bit RGB parallel LCD up to 1080p60 E0Ink EPD support up to 1872 x 1404 Camera – 2x MIPI CSI-2, 8/10/12/16-bit DVP Audio Up to 5x SAI, up to 192 kHz sample rate, 16-bit to 32-bit audio resolution Up to 2x S/PDIF Tx 1x S/PDIF Rx 1x PDM up to 8 channels, up to 192 kHz sample rate, 16-bit to 24-bit audio resolution Networking – 2x Gigabit Ethernet interfaces (RGMII/RMII) PCIe/SATA/USB multiplexed interfaces 2x single-lane combo interfaces (PCIe 2.1 / SATA 3.1 / USB 3.0) 1x single-lane combo interface (PCIe 2.1 / SATA 3.1) 2x USB 2.0 OTG DSMC – Double Data Rate Serial Memory Controller for connection to PSRAM, FPGA… Other I/Os 2x SDIO 3.0 Up to 5x SPI, 9x I2C, 1x I3C Up to 12x UART with RS-485 mode support Up to 4x CAN and CAN FD Up to 16x PWM Up to 8x 12-bit ADC (1 Mbps max) DSMC
Display HDMI 2.1 or eDP 1.3 Tx up to 4Kp60 4-lane MIPI DSI 1.2 up to 2560 × 1600 @ 60 Hz 8-bit RGB parallel LCD up to 1080p60 E0Ink EPD support up to 1872 x 1404
4-lane MIPI DSI 1.2 up to 2560 × 1600 @ 60 Hz
