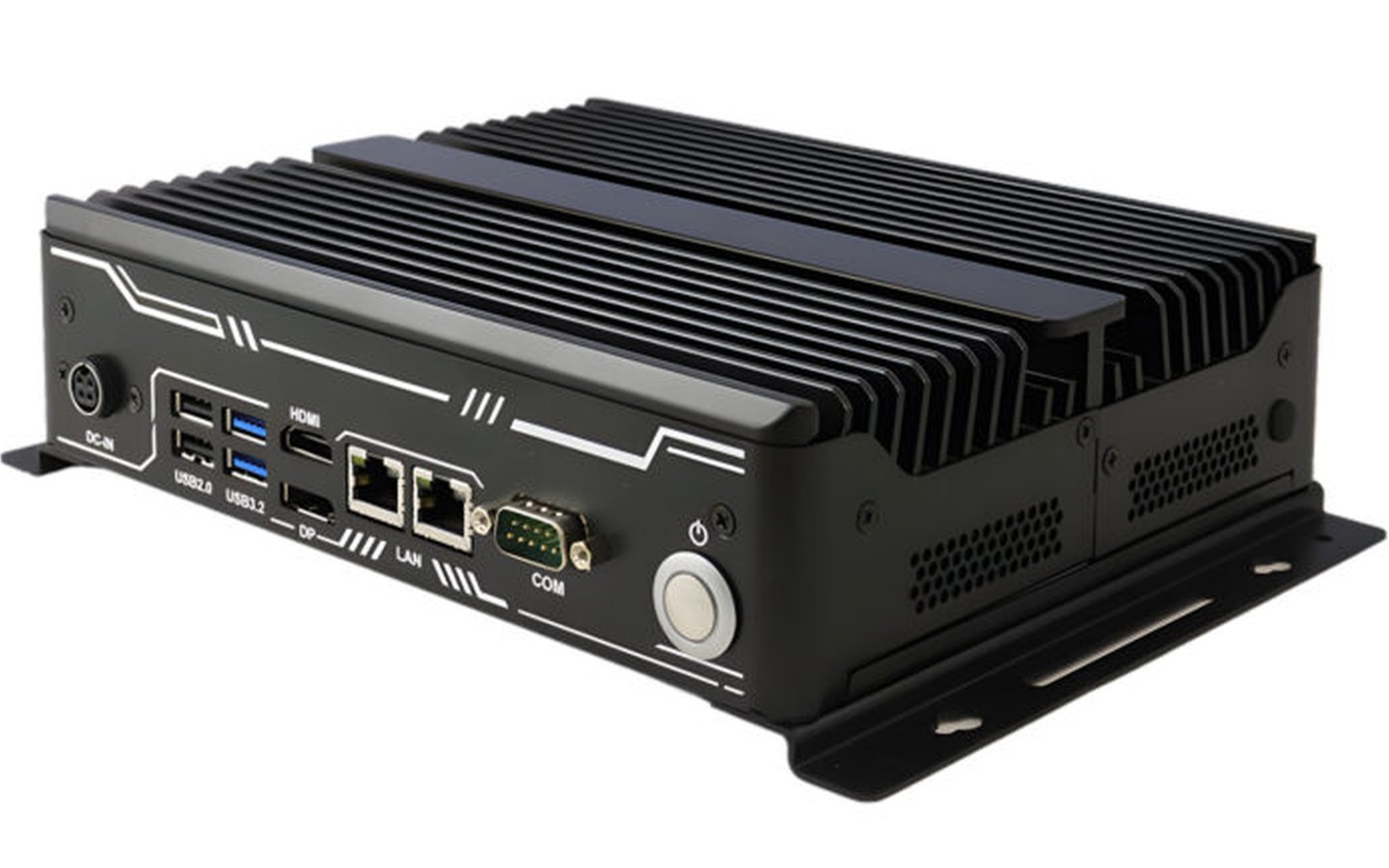

IBASE AA400-N is an “ultra-compact” fanless edge AI computer powered by an AMD Ryzen Embedded 8840U/8640U processor with up to 8 cores, 16 threads, and a combined 39 TOPS of AI performance for machine and robotic vision, autonomous inspection, smart retail, industrial automation, and other data-intensive, space-constrained applications.
The most intriguing part of the specs and announcement is the claim of up to 256GB DDR5 capacity through two SO-DIMM modules, implying availability of 128GB DDR5 SO-DIMM memory modules. The system also comes with a 256GB M.2 NVMe SSD, features 8K-capable HDMI and DisplayPort video interfaces, two 2.5GbE jacks, M.2 sockets for optional WiFi, Bluetooth and 4G/5G cellular connectivity, a few USB ports and a COM port.
AMD Ryzen Embedded 8000 Series processors AA400-NM – AMD Ryzen Embedded 8840U CPU – 8-core/16-thread Zen4 “Hawk Point” processor up to 3.3 GHz / 5.1 GHz (Turbo) GPU – AMD Radeon 780M with 12x Compute Units @ 2700 MHz (RDNA3 graphics) AI 16 TOPS NPU (AMD XDNA) Total combined 39 TOPS of AI performance TDP – 15W AA400-N8640M – AMD Ryzen Embedded 8640U CPU – 6-core/12-thread Zen4 “Hawk Point” processor up to 3.5 GHz / 4.9 GHz (Turbo) GPU – AMD Radeon 780M with 8x Compute Units @ 2600 MHz (RDNA3 graphics) AI 16 TOPS NPU (AMD XDNA) Total combined ~31 TOPS of AI performance TDP – 15W
AA400-NM – AMD Ryzen Embedded 8840U CPU – 8-core/16-thread Zen4 “Hawk Point” processor up to 3.3 GHz / 5.1 GHz (Turbo) GPU – AMD Radeon 780M with 12x Compute Units @ 2700 MHz (RDNA3 graphics) AI 16 TOPS NPU (AMD XDNA) Total combined 39 TOPS of AI performance TDP – 15W
CPU – 8-core/16-thread Zen4 “Hawk Point” processor up to 3.3 GHz / 5.1 GHz (Turbo)
Memory – Up to 256GB dual-channel DDR5 5600 MHz via 2x 262-pin SO-DIMM sockets (2x 128GB)
Storage – 256GB NVMe SSD via M.2 Key-M 2280 (PCIe Gen4 x4) socket
Video output HDMI 2.1 port up to 8K DisplayPort 2.1 up to 8K
