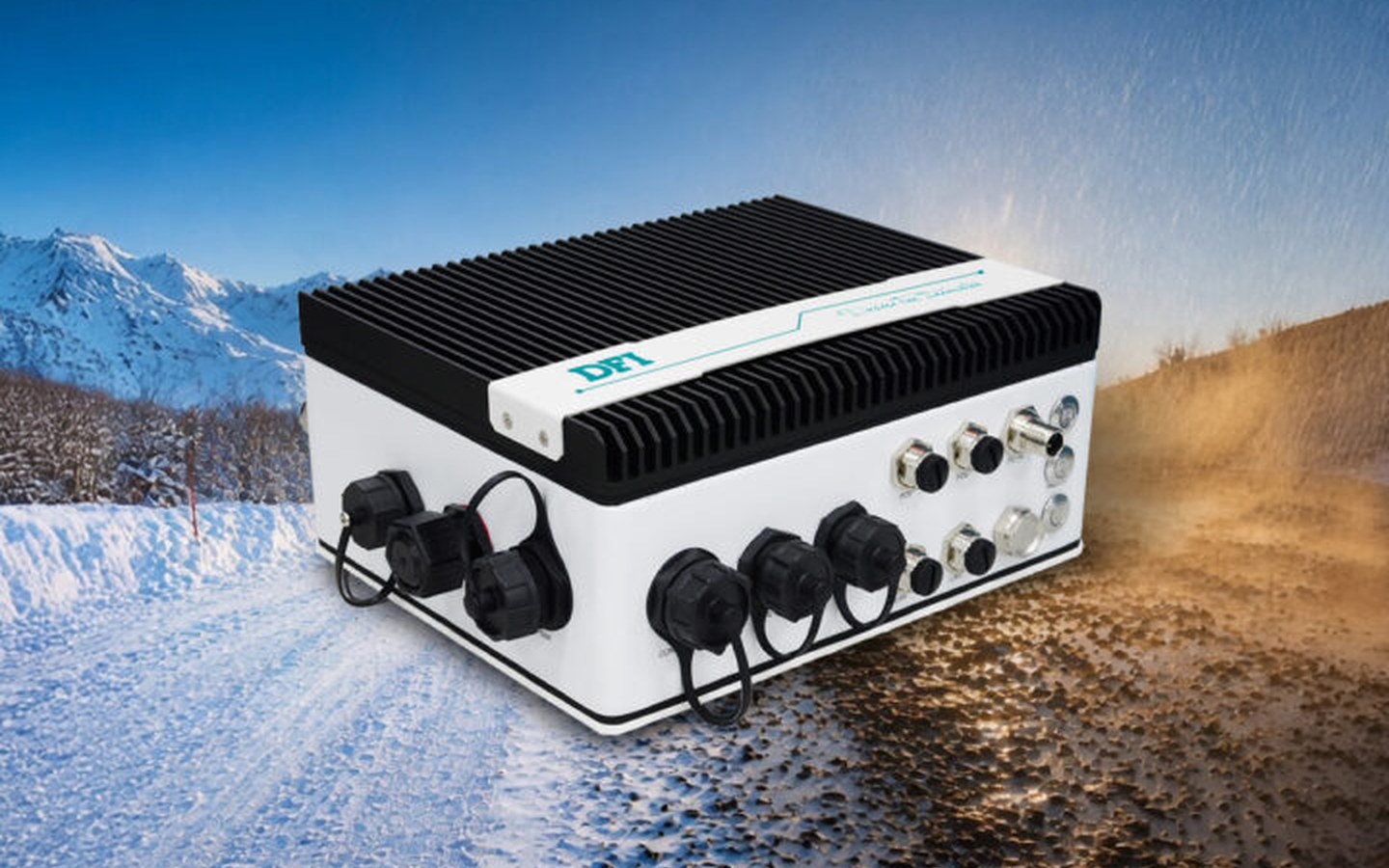

The DFI X6X-ORN is a fanless, IP67-rated Edge AI computer powered by the NVIDIA Jetson Orin NX/Nano. It is designed for extreme outdoor and industrial environments in maritime, agriculture, construction, and intelligent transportation applications.
The system fully relies on rugged M12 and M20 circular waterproof connectors for all its I/O, including PoE and GMSL2 camera interfaces. It delivers up to 157 TOPS of AI performance when equipped with the Jetson Orin NX 16GB module, complies with MIL-STD-810H shock and vibration standards, and supports an operating temperature range of -20°C to 60°C.
SoM – NVIDIA Jetson Orin NX / Nano module Jetson Orin NX 16GB – Up to 157 TOPS, 16GB LPDDR5, 10W/15W/25W/ 40W power modes Jetson Orin NX 8GB – Up to 117 TOPS, 8GB LPDDR5, 10W/15W/25W/40W power modes Jetson Orin Nano 8GB – Up to 67 TOPS, 8GB LPDDR5, 7W/10W/25W power modes Jetson Orin Nano 4GB – Up to 34 TOPS, 4GB LPDDR5, 7W/10W / 25W power modes
Jetson Orin NX 16GB – Up to 157 TOPS, 16GB LPDDR5, 10W/15W/25W/ 40W power modes
Jetson Orin NX 8GB – Up to 117 TOPS, 8GB LPDDR5, 10W/15W/25W/40W power modes
Storage – M.2 2242/2280 M-key slot for NVMe SSD
Camera – 2x GMSL2 (FAKRA SMB Plug Z code)
Networking 4x GbE M12 X-code 8-pin ports, including 2x with PoE 802.3af (supporting up to 15W per port) Optional WiFi/Bluetooth via M.2 E-Key socket (USB 2.0 + PCIe x1 signals) Optional 5G/LTE via M.2 Key B slot with Nano SIM card slot (M20) Holes for up to 6x antennas for WiFi, cellular, and OOB
