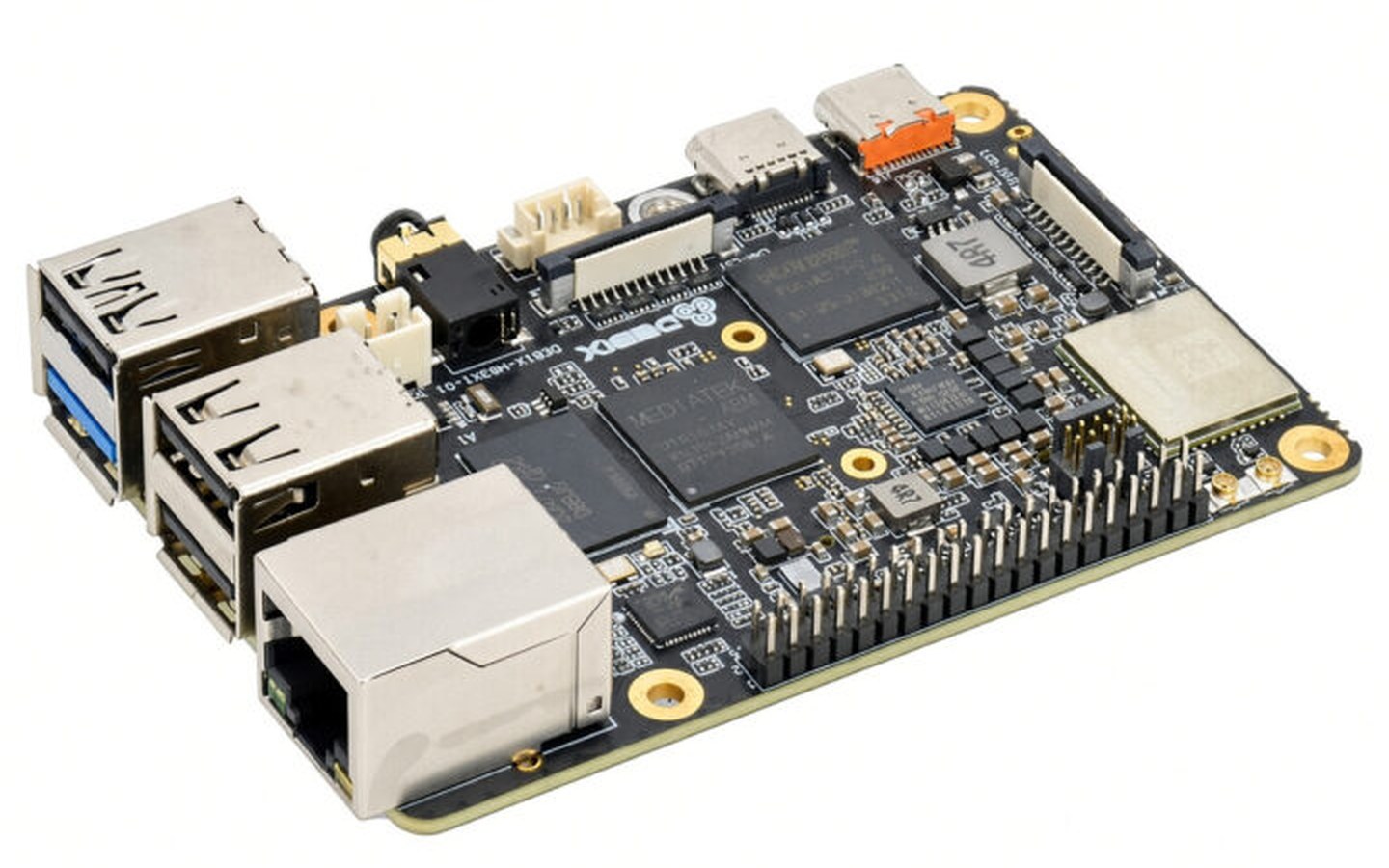

The DEBIX M8391-01 is a compact industrial SBC built around the MediaTek MT8391 (Genio 720) processor, designed for edge AI, computer vision, robotics, and intelligent IoT applications. The S0C’s 9-TOPS NPU enables local AI inference without relying on cloud processing.
The board features up to 16GB LPDDR4 memory and up to 64GB eMMC storage, with M.2 PCIe 2.0 NVMe SSD and MicroSD card expansion. It also offers a 4-lane MIPI CSI camera input, MIPI DSI up to 2.5K and eDP 1.4 display interfaces, Gigabit Ethernet with PoE, Wi-Fi 6, Bluetooth 5.4, five USB ports, and a 40-pin expansion header. With an industrial operating temperature range (-40°C to 85°C), this credit card-sized, Raspberry Pi-inspired SBC can be used for edge AI vision, robotics, industrial IoT, and other embedded systems.
MediaTeck Genio 720 (MT8391) CPU Commercial-grade (default) – 2x Arm Cortex-A78 cores @ up to 2.6 GHz, 6x Arm Cortex-A55 cores @ up to 2.0 GHz Industrial-grade (optional) – 2x Arm Cortex-A78 cores @ up to 2.4 GHz, 6x Arm Cortex-A55 cores @ up to 2.0 GH GPU – Arm Mali-G57 MC2 up to 1.1 GHz VPU Video Decode – Up to 1920 x 1200 @ 60fps Video Encoder – Up to 1920 x 1200 @ 60fps ISP – 2x ISP NPU – NPU850 AI accelerator up to 9 TOPS
CPU Commercial-grade (default) – 2x Arm Cortex-A78 cores @ up to 2.6 GHz, 6x Arm Cortex-A55 cores @ up to 2.0 GHz Industrial-grade (optional) – 2x Arm Cortex-A78 cores @ up to 2.4 GHz, 6x Arm Cortex-A55 cores @ up to 2.0 GH
Commercial-grade (default) – 2x Arm Cortex-A78 cores @ up to 2.6 GHz, 6x Arm Cortex-A55 cores @ up to 2.0 GHz
Memory – 4GB LPDDR4 by default (8GB and 16GB optional)
Storage 32GB eMMC flash (8GB, 16GB, or 64GB optional) M.2 KEY-M 2242 socket for PCIe 2.0 NVMe SSDs MicroSD card slot 2Kb EEPROM
32GB eMMC flash (8GB, 16GB, or 64GB optional)
