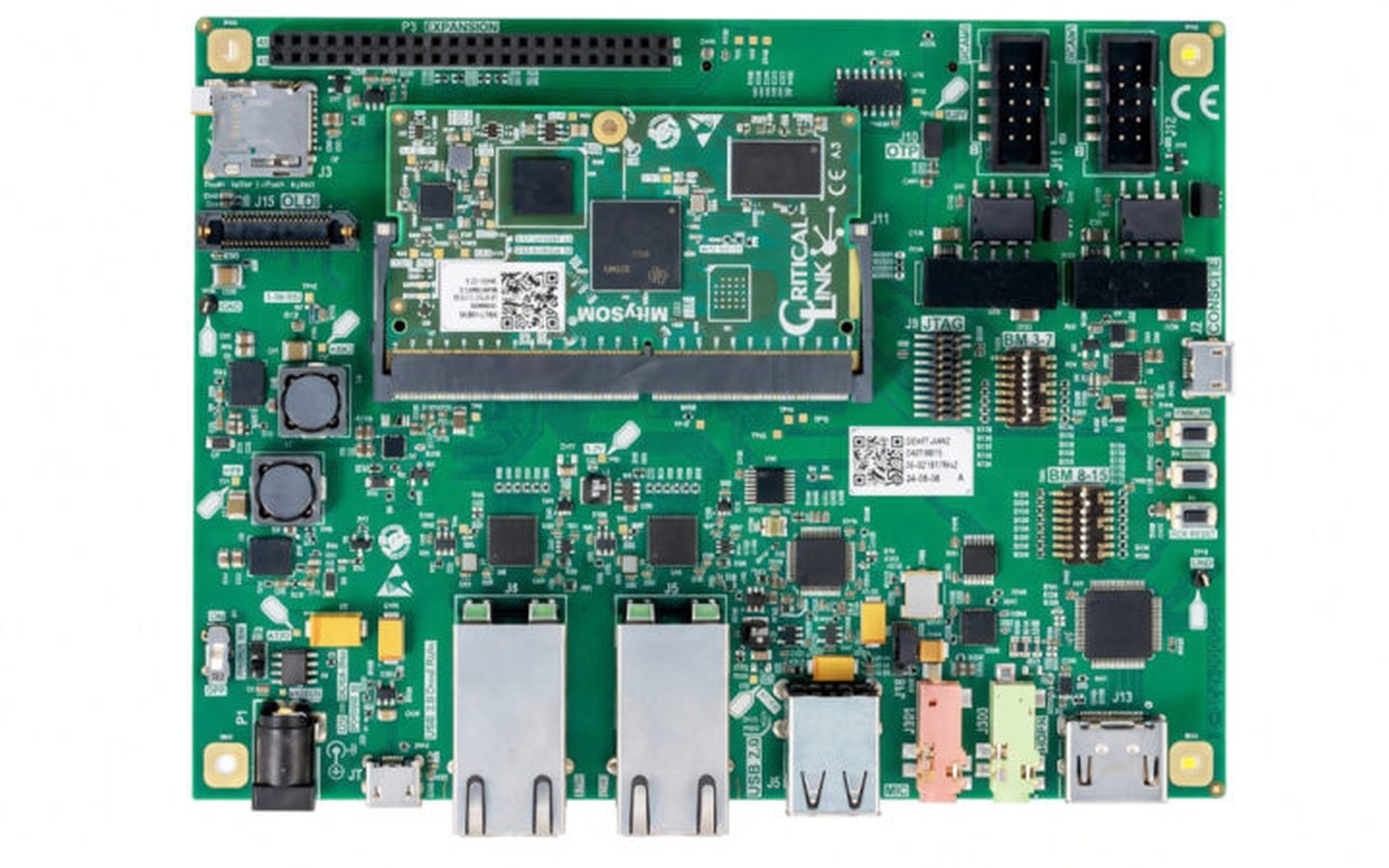

Critical Link MitySOM-AM62x/A/P is a family of TI Sitara AM62-based industrial SO-DIMM SoMs designed for embedded Linux systems, industrial automation, HMI, and other embedded applications. The family includes the general-purpose MitySOM-AM62, AI-focused MitySOM-AM62A, and multimedia-oriented MitySOM-AM62P system-on-modules.
The standard AM62 modules feature up to a quad-core Arm Cortex-A53 processor at 1.4 GHz, along with a 400 MHz Cortex-M4F MCU and dual programmable real-time units (PRUs). The AM62A adds a C7x DSP with Matrix Multiply Accelerator supporting up to 2 TOPS and an image signal processor (ISP), while the AM62P includes a 3D GPU rated above 50 GFLOPS and a four-lane MIPI DSI output.
MitySOM-AM62x / AM62Ax / AM62Px specifications:
SoM options MitySOM-AM62x – Texas Instruments Sitara AM62x Application CPU – Up to Quad-core Arm Cortex-A53 up to 1.4 GHz Real-time cores Arm Cortex-M4F up to 400 MHz Dual-core Programmable Real-Time Unit (PRU-SS) up to 333 MHz GPU – 3D Graphics Processing Unit (>8 GFLOPS) supporting OpenGL ES and Vulkan (available on AM625x models) NPU – None MitySOM-AM62Ax – Texas Instruments Sitara AM62Ax Application CPU – Quad-core Arm Cortex-A53 up to 1.4 GHz Real-time cores – 1x Arm Cortex-R5F up to 800 MHz GPU – None NPU / Accelerators – C7x DSP with Matrix Multiplication supporting up to 2 TOPS; includes hardware video encode/decode and ISP acceleration MitySOM-AM62Px – Texas Instruments AM62P (AM62P54CVMHIAMHR) Application CPU – Quad-core Arm Cortex-A53 up to 1.4 GHz Real-time cores 1x Arm Cortex-R5F up to 800MHz (integrated with MCU channel) 1x Arm Cortex-R5F up to 800MHz (for device management) GPU – Imagination IMG BXS-4-64 GPU up to 50 GFLOPS; supports OpenGL ES 3.2, Vulkan 1.2, OpenCL 1.2 EP NPU – None (AI inference handled by A53 cores or GPU)
MitySOM-AM62x – Texas Instruments Sitara AM62x Application CPU – Up to Quad-core Arm Cortex-A53 up to 1.4 GHz Real-time cores Arm Cortex-M4F up to 400 MHz Dual-core Programmable Real-Time Unit (PRU-SS) up to 333 MHz GPU – 3D Graphics Processing Unit (>8 GFLOPS) supporting OpenGL ES and Vulkan (available on AM625x models) NPU – None
System memory MitySOM-AM62x – Up to 4 GB DDR4 x16 @ 800 MHz with 3.2 GB/sec burst bandwidth MitySOM-AM62Ax – Up to 16 GB LPDDR4 x32 @ 1866 MHz with 14.9 GB/sec burst bandwidth MitySOM-AM62Px – Up to 8 GB LPDDR4 x32 @ 1600 MHz with 13.2 GB/sec burst bandwidth
MitySOM-AM62x – Up to 4 GB DDR4 x16 @ 800 MHz with 3.2 GB/sec burst bandwidth
MitySOM-AM62Ax – Up to 16 GB LPDDR4 x32 @ 1866 MHz with 14.9 GB/sec burst bandwidth
