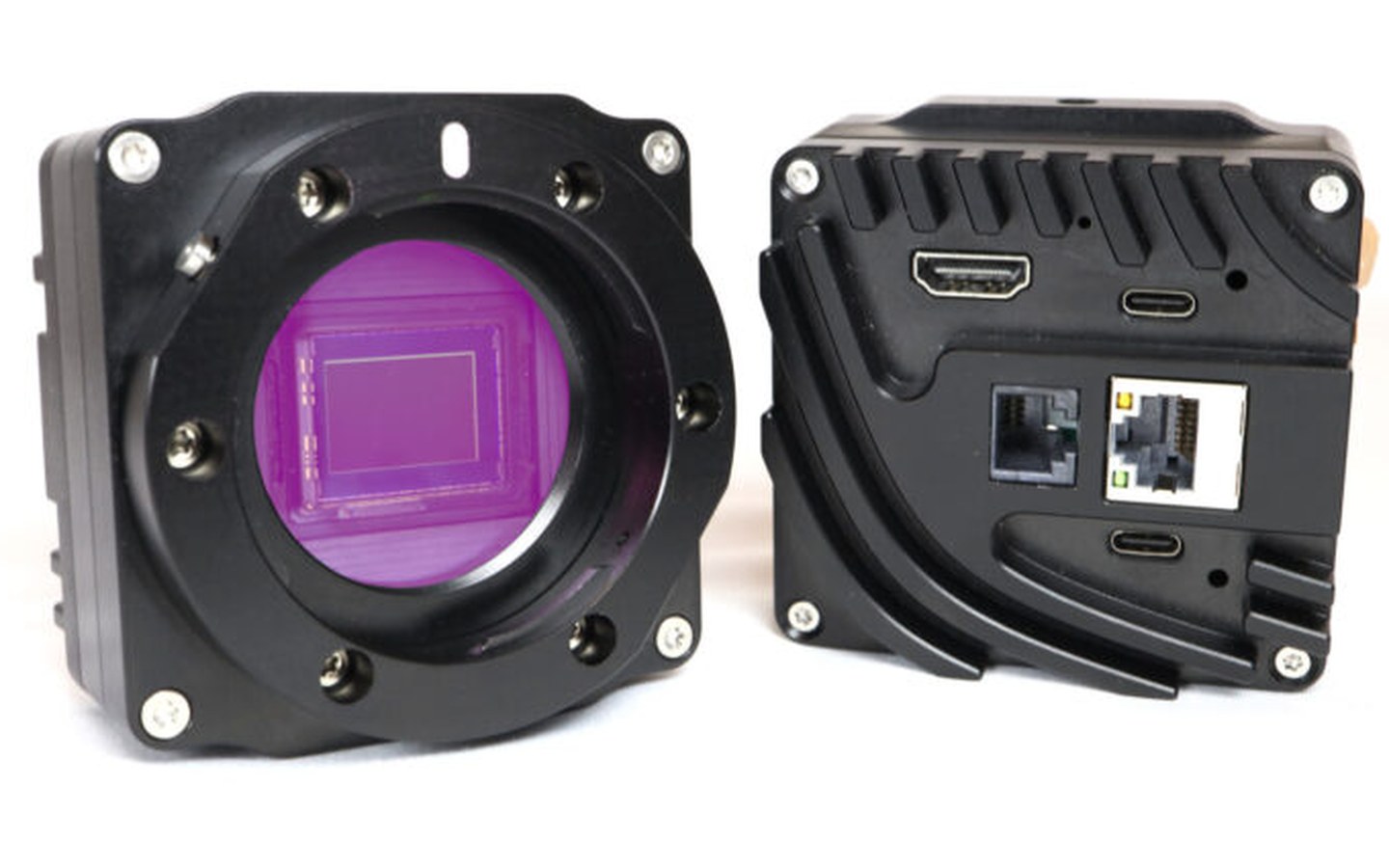

Circuit Valley’s CHC5 is a modular camera system based on a Core board powered by an AMD/Xilinx Zynq-7020 SoC FPGA, a range of interface boards with USB, HDMI, or Ethernet (PoE), various sensor boards, and a metal enclosure.
The solution can be customized with different lens objectives and different sensors with MIPI D-PHY, LVDS, Sub-LVDS, Low Voltage LVDS, or SLVS interfaces. The Zynq-7020’s Cortex-A9 cores can handle complex tasks, while the FPGA fabric takes care of high-speed calculation and correction on the image, and can also be leveraged for AI/machine-vision-specific algorithms or complex low-latency hardware acceleration.
Core board SoC – Xilinx AMD Zynq-7020 SoC FPGA CPU – Dual-core Arm Cortex-A9 processor FPGA – 85K logic cells, 4.9Mb Block RAM, 220 DSP slices System Memory – 1GB DDR3 Storage 1 Gbit flash memory MicroSD card slot ISP – Full-fledged ISP implemented on FPGA fabric
SoC – Xilinx AMD Zynq-7020 SoC FPGA CPU – Dual-core Arm Cortex-A9 processor FPGA – 85K logic cells, 4.9Mb Block RAM, 220 DSP slices
FPGA – 85K logic cells, 4.9Mb Block RAM, 220 DSP slices
Multiple interface boards with 10Gbps USB 3.0, 5Gbps USB 3.0, optional PoE, optional HDMI, etc; connect over PS and PL connectors on Core board
Interchangeable lens mount Minimum flange distance of 8.75mm Currently available lens mounts: C-Mount, CS-Mount, Canon RF-Mount (Manual Controls), Sony E-Mount (Manual Controls), M42 Mount with Multiple Flange Distance, S Mount, M43 or Custom Lens Mount
Currently available lens mounts: C-Mount, CS-Mount, Canon RF-Mount (Manual Controls), Sony E-Mount (Manual Controls), M42 Mount with Multiple Flange Distance, S Mount, M43 or Custom Lens Mount
