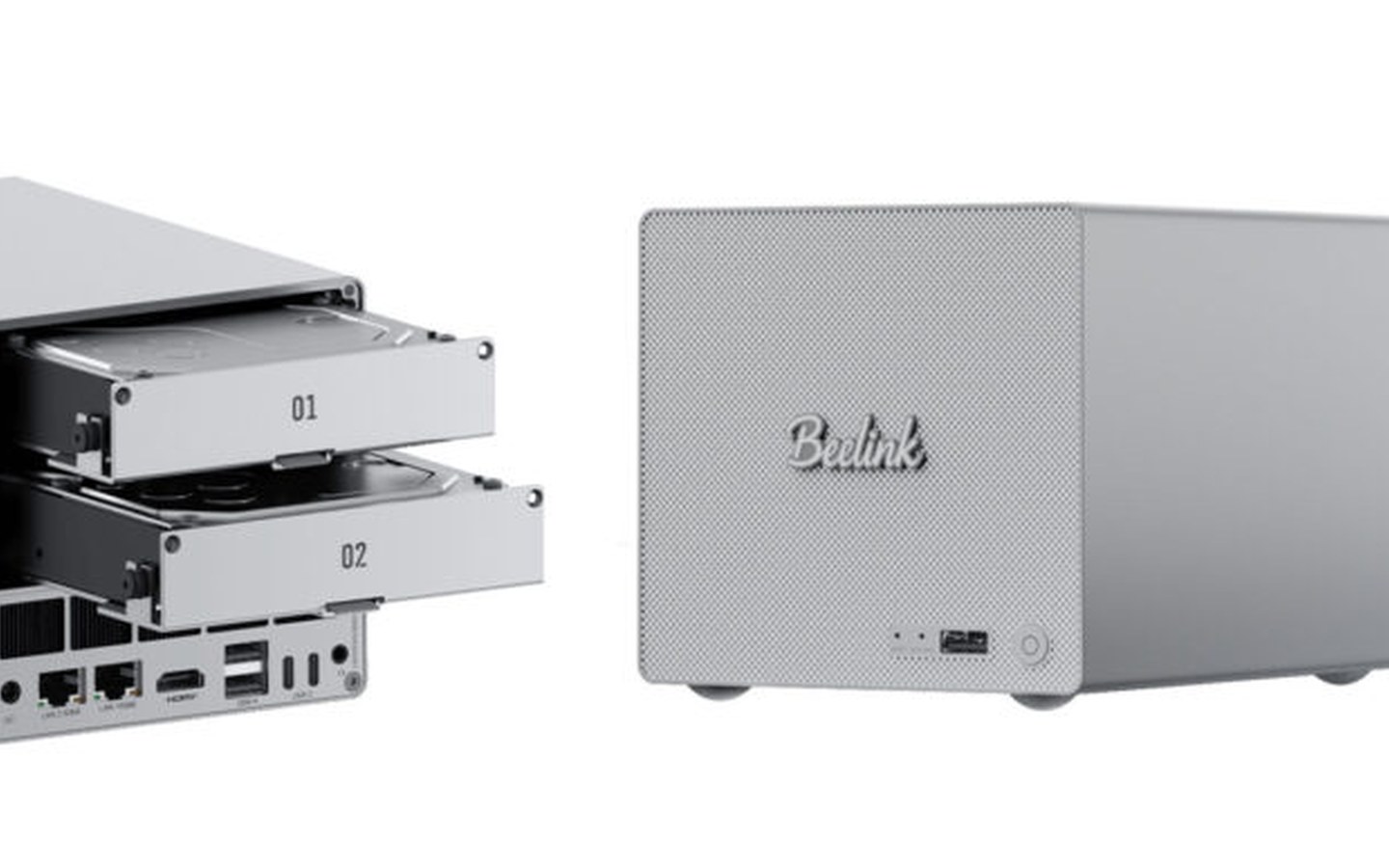

Beelink “ME Pro 2-Bay AI NAS Mini PC Intel Wildcat Lake 304” offers two SATA bays and one M.2 PCIe Gen4 socket, and is equipped with 16GB DDR5-5600 SO-DIMM memory and 512GB UFS 3.1 storage.
It’s an upgrade to the Beelink ME Pro Intel N95/N150 NAS and mini PC introduced last February. Besides the faster processor, the NAS trades its 5GbE port for a faster 10GbE port, and gains two Thunderbolt 4 ports. One downside, due to the lower number of PCIe lanes in Wildcat Lake processors, is that it now features one M.2 PCIe Gen4 socket, instead of three M.2 PCIe Gen3 sockets, which is somewhat mitigated by the built-in UFS storage.
SoC – Intel Core 3 304 “Wildcat Lake” 5-core CPU – 1x P-cores @ 1.5/4.3 GHz (Turbo) + 4x LPE-cores @ 1.4/3.3 GHz (Turbo) Cache – 6MB L3 cache GPU – 1-core Intel Xe3 Graphics @ 2.3 GHz (9 TOPS) NPU – 15 TOPS Manufacturing processor – Intel 18A
5-core CPU – 1x P-cores @ 1.5/4.3 GHz (Turbo) + 4x LPE-cores @ 1.4/3.3 GHz (Turbo)
GPU – 1-core Intel Xe3 Graphics @ 2.3 GHz (9 TOPS)
Memory – 16GB DDR5 5600MHz SO-DIMM memory; upgradeable up to 64GB
Storage 512GB UFS 3.1 flash for OS 2× SATA bays for 2.5-inch / 3.5-inch HDDs (up to 30 TB per drive, 60 TB total) M.2 2280 PCIe 4.0 x1 NVMe slot (up to 4 TB) Up to 64 TB total storage
2× SATA bays for 2.5-inch / 3.5-inch HDDs (up to 30 TB per drive, 60 TB total)
