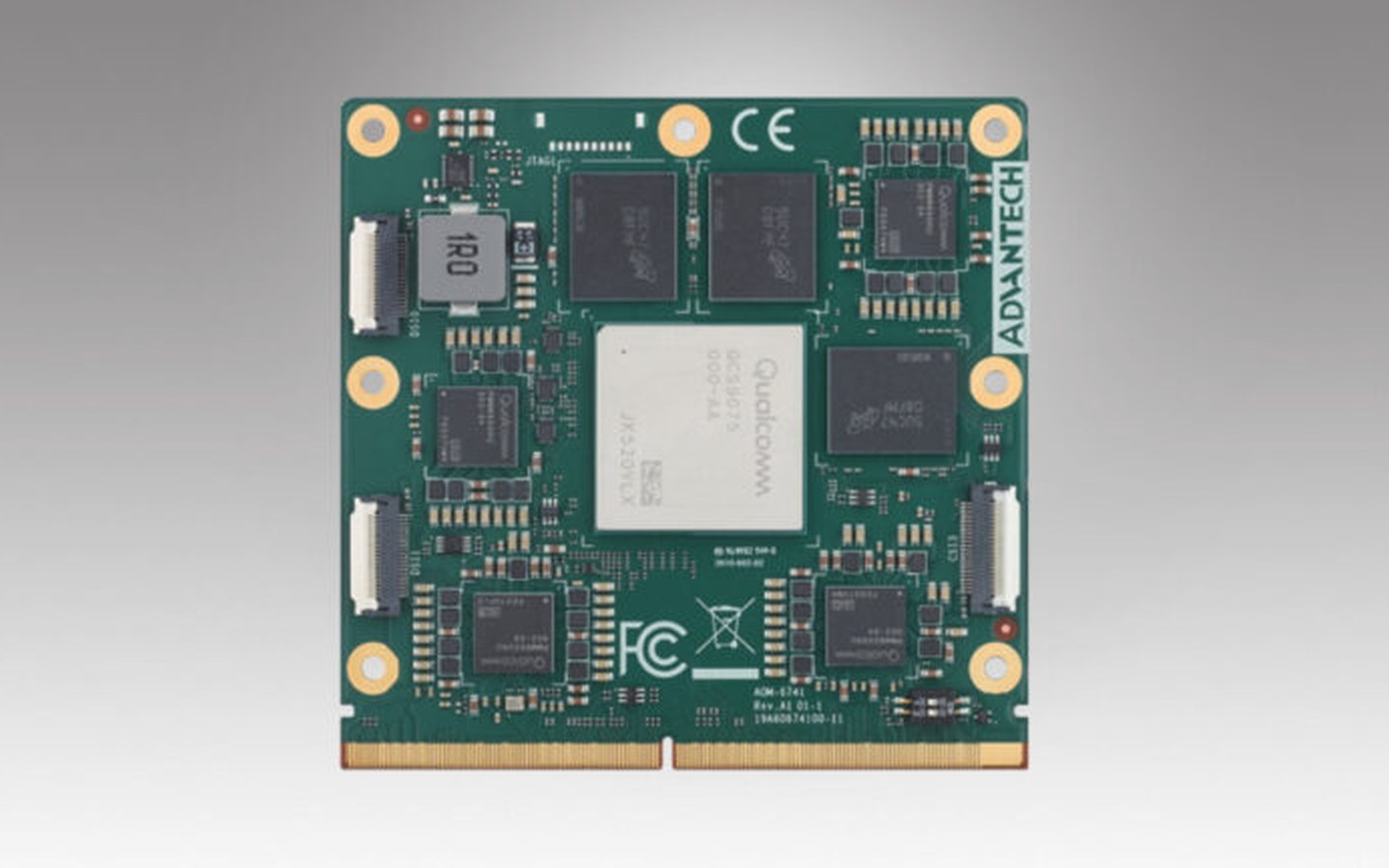

Advantech AOM-6741 is a SMARC 2.2 Full Size module powered by a Qualcomm Dragonwing IQ-9075 octa-core SoC with up to 100 TOPS (INT8) of AI performance, up to 36 GB LPDDR5 memory, and 128GB UFS storage.
The module also features two MIPI DSI connectors, at least one MIPI CSI connector, and exposes all I/Os through a standard 314-pin MXM 3.0 edge connector, including four DisplayPort interfaces, dual 2.5GbE, two USB 3.2 Gen2, PCIe Gen3 x2 and x4 interfaces, and more. With support for up to 16 concurrent cameras, the OAM-06741 SoM mainly targets industrial-grade vision intelligence applications.
SoC – Qualcomm DragonWing IQ-9075 CPU Octa-core Kryo Gen 6 (Cortex-A78C-based) application cores @ up to 3.2 GHz (according to Advantech, conflicts with earlier announcements mentioning up to 2.36 GHz) Quad-core Cortex-R52 real-time cores @ up to 1.85GHz GPU – Adreno 663 GPU delivering up to 1.2 TFLOPS FP32 with secure GPU compute; supports Vulkan 1.2, OpenGL ES 3.2, OpenCL 2.0 FP, Adreno NN Direct VPU – Adreno VPU 765 Video Decode: AV1 / HEVC / H.265 / H.264 / VP9 / MPEG-2 1x 8Kp60 / 2x 8Kp30 / 4x 4Kp60 / 8x 4Kp30 / 16x 1080p60 / 32x 1080p30 Video Encode: H.264 / H.265 / HEIF / HEIC 2x 4Kp60 / 4x 4Kp30 / 8x 1080p60 / 16x 1080p30 Concurrent 2x 4Kp60 encode + 2x 4Kp60 decode AI accelerator Hexagon Tensor Processor (HTP) with quad HVX and dual HMX 100 TOPS (dense) or 200 TOPS (sparse) Supports deep-learning frameworks: TensorFlow, PyTorch, ONNX, Paddle, Caffe, DarkNet, etc.
CPU Octa-core Kryo Gen 6 (Cortex-A78C-based) application cores @ up to 3.2 GHz (according to Advantech, conflicts with earlier announcements mentioning up to 2.36 GHz) Quad-core Cortex-R52 real-time cores @ up to 1.85GHz
Octa-core Kryo Gen 6 (Cortex-A78C-based) application cores @ up to 3.2 GHz (according to Advantech, conflicts with earlier announcements mentioning up to 2.36 GHz)
System Memory – Up to 36 GB LPDDR5 at 8400 MT/s
Display Interfaces – 2x 4-lane MIPI DSI connectors up to 4Kp30
Camera Interface – 1x MIPI CSI connector
