ADLINK COM-HPC-mPTL COM-HPC Mini computer-on-module features up to 180 TOPS Intel Core Ultra Series 3 CPU
ADLINK COM-HPC-mPTL is a COM-HPC R1.3 Mini computer-on-module powered by the Intel Core Ultra Processor Series 3 "Panther Lake" family, up to the 180 TOPS
Condensed by AI-Portable from Editorial queue.

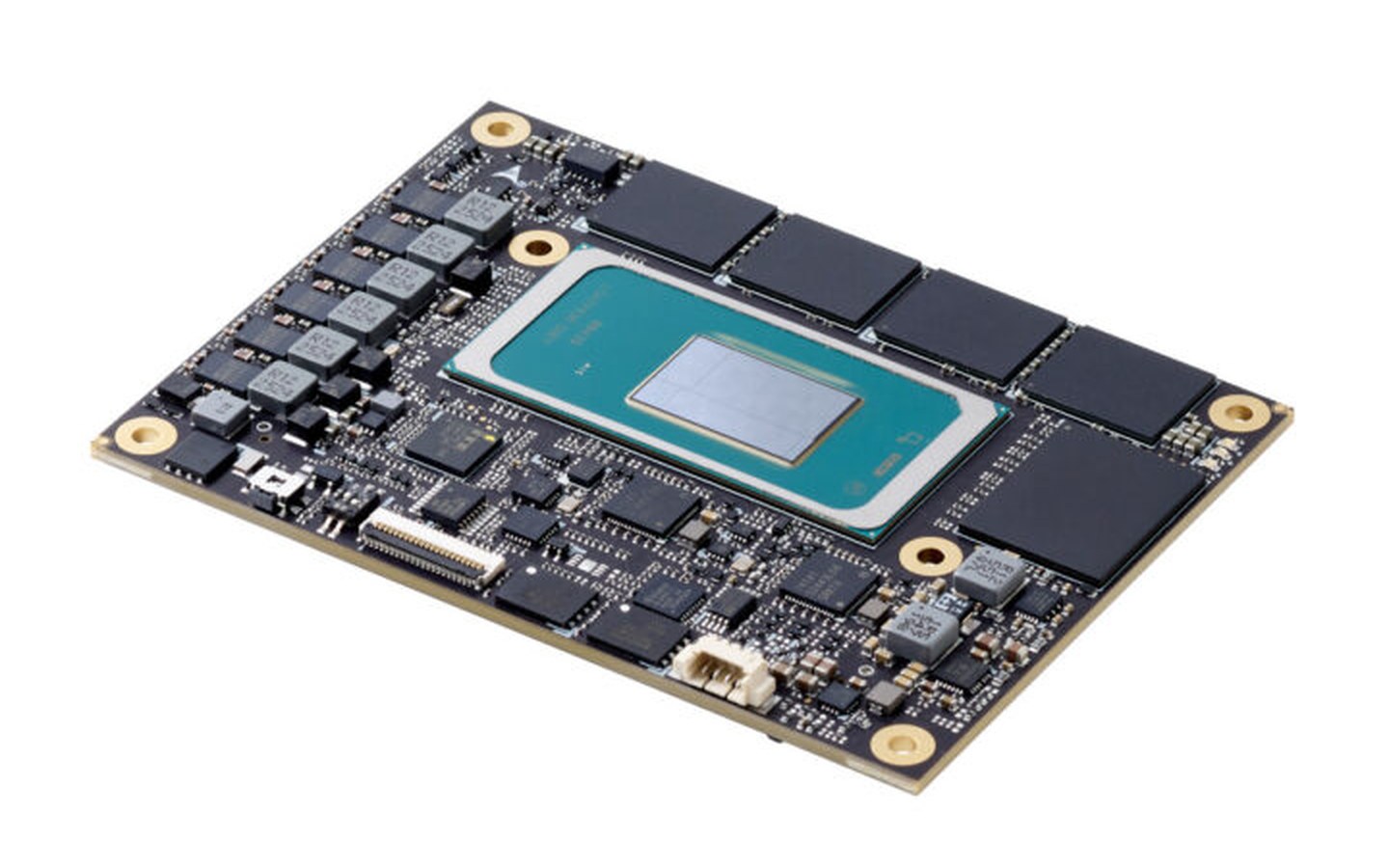

ADLINK COM-HPC-mPTL is a COM-HPC R1.3 Mini computer-on-module powered by the Intel Core Ultra Processor Series 3 “Panther Lake” family, up to the 180 TOPS 16-core Core Ultra X7 358H processor.
The module supports up to 64GB LPDDR5x and optional NVMe SSD BGA storage, and features two 2.5GbE controllers, optional MIPI CSI camera connectors, and a 40-pin debug connector. All I/Os are exposed through a standard 400-pin high-density board-to-board connector, including four display interfaces (HDMI, DP, USB4, eDP), and up to 16x PCIe Gen4/Gen5 lanes.
SoC – Intel Core Ultra Series 3 Panther Lake-H processors (one or the other) Intel Core Ultra 5 325 8-core (4P+0E+4LPE) processor up to 2.1 GHz / 4.5 GHz (Turbo) with 12MB cache, 4-core Xe3 graphics (40 TOPS), 47 TOPS NPU; PBP: 25W Intel Core Ultra 7 356H 16-core (4P+8E+4LPE) processor up to 1.9 GHz / 4.7 GHz (Turbo) with 18MB cache, 4-core Xe3 graphics (40 TOPS), 50 TOPS NPU; PBP: 25W Intel Core Ultra X7 358H 16-core (4P+8E+4LPE) processor up to 1.9 GHz / 4.8 GHz (Turbo) with 18MB cache, 12-core Xe3 graphics (Arc B390, 122 TOPS), 50 TOPS NPU; PBP: 25W
Intel Core Ultra 5 325 8-core (4P+0E+4LPE) processor up to 2.1 GHz / 4.5 GHz (Turbo) with 12MB cache, 4-core Xe3 graphics (40 TOPS), 47 TOPS NPU; PBP: 25W
Intel Core Ultra 7 356H 16-core (4P+8E+4LPE) processor up to 1.9 GHz / 4.7 GHz (Turbo) with 18MB cache, 4-core Xe3 graphics (40 TOPS), 50 TOPS NPU; PBP: 25W
System Memory – Up to 64 GB (4x 16GB) LPDDR5x up to 7467 or 8533 MT/s depending on SKU
Storage – Onboard NVMe SSD (optional co-lay with PCIe lane 4 & 5 w/ PCIex2 Gen5)
Networking – 2x Intel I226 2.5 Gbps Ethernet controllers with support for TSN by build option
