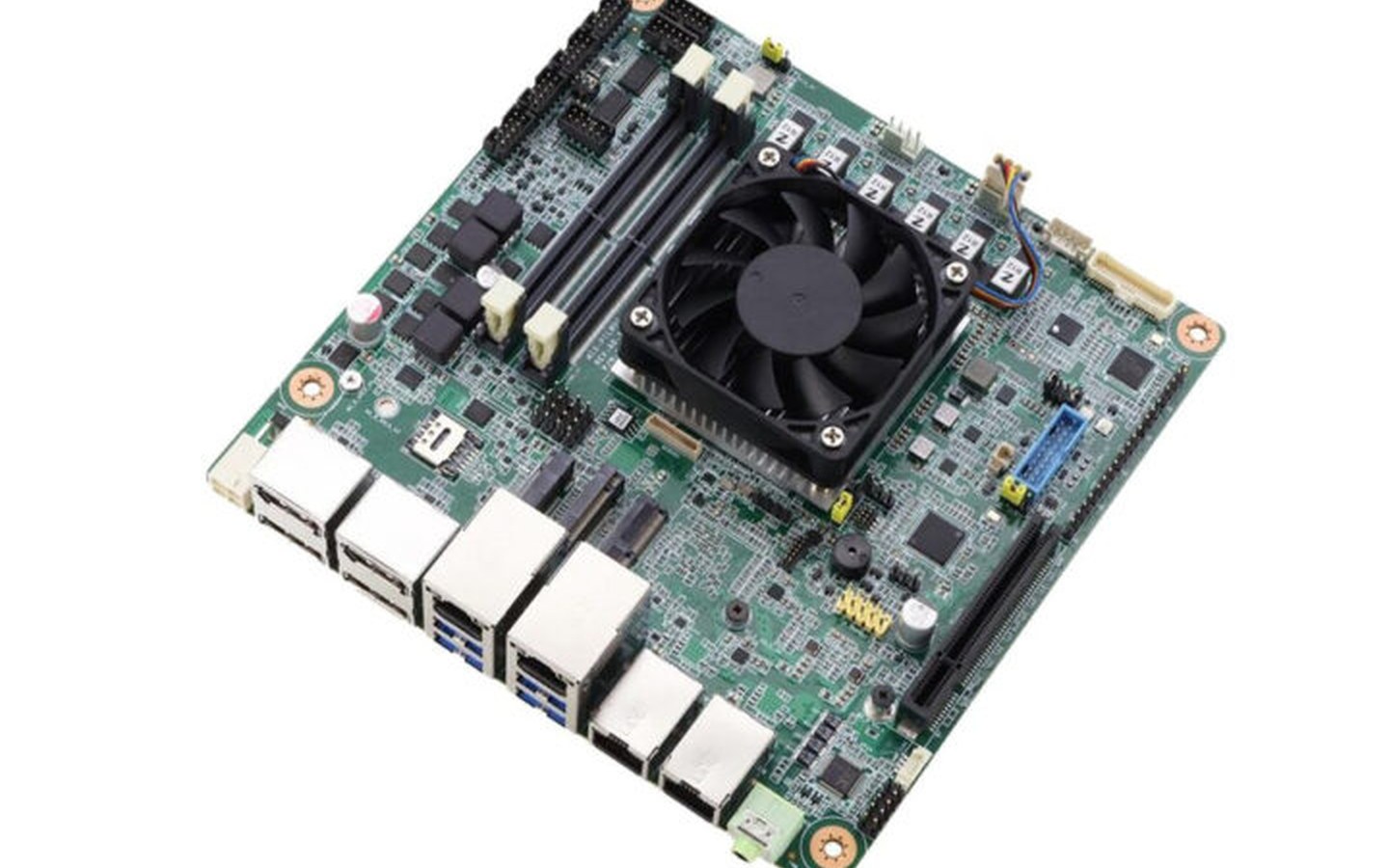

AAEON MIX-PTLWV1 is an industrial mini-ITX motherboard based on Intel Core Ultra Series 3 “Panther Lake” processors with up to two 10GbE and two 2.5GbE RJ45 jacks, and four 4K-capable DisplayPort video outputs.
The motherboard also supports up to 128GB DDR5 C/SO-DIMM memory, M.2 NVMe SSD storage, optional WiFi and Bluetooth, and/or 4G LTE/5G cellular via M.2 modules, a PCIe Gen4 x8 slot for expansion, six serial interfaces, 12V-24V wide DC input, and more.
SoC – Intel Panther Lake processor (PTL-H404/PTL-H484 families) with Intel Xe LPG graphics; TDP: 15 to 25W
System Memory – Up to 128GB via 2x 262-pin DDR5 C/SO-DIMM sockets up to 6400MHz (H404 SKU) or 7200MHz (H484 SKU)
Storage – M.2 2280 M-Key (PCIe Gen4 x4) socket for NVMe SSD
Display Interfaces 4x DisplayPort 1.4 up to 4096 x 2160 @ 60Hz 40-pin LVDS/eDP co-layout connector for Default: 18/24 bit dual-channel LVDS up to 1920 x 1080 @ 60Hz 4-channel eDP1.4 up to 4096 x 2160 @ 120Hz (by BOM) eDP/LVDS T-con IC voltage selection eDP/LVDS panel backlight voltage select (3.3V/5V/12V) LVDS Inverter Quad independent display support
4x DisplayPort 1.4 up to 4096 x 2160 @ 60Hz
40-pin LVDS/eDP co-layout connector for Default: 18/24 bit dual-channel LVDS up to 1920 x 1080 @ 60Hz 4-channel eDP1.4 up to 4096 x 2160 @ 120Hz (by BOM)
