$7.99 Seeed Studio Wio-S3 WiFi, Bluetooth LE, and LoRa IoT module combines ESP32-S3 and SX1262 RF transceiver

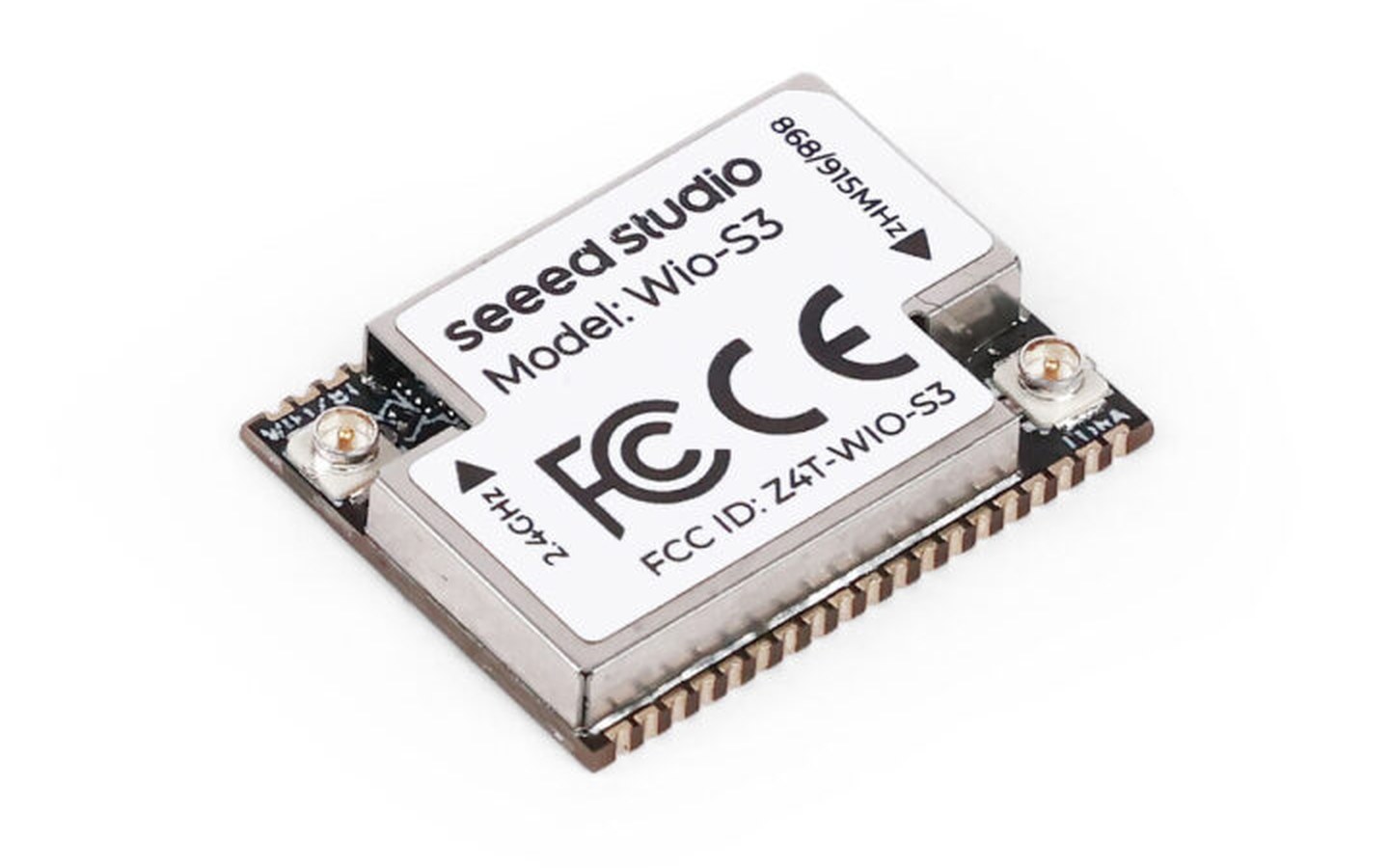

Seeed Studio Wio-S3 is a compact (21.6 x 16.5 x 3.3 mm) wireless module that combines an ESP32-S3R8 dual-core WiFi 4 and Bluetooth LE MCU and a Semtech
Condensed by AI-Portable from Editorial queue.
Seeed Studio Wio-S3 is a compact (21.6 x 16.5 x 3.3 mm) wireless module that combines an ESP32-S3R8 dual-core WiFi 4 and Bluetooth LE MCU and a Semtech SX1262 LoRa transceiver.
The module includes 16MB Flash and 8MB PSRAM, and supports LoRa (EU868/US915) with up to +20.9 dBm transmit power and -137 dBm sensitivity. It also supports Wi-Fi 4 and BLE 5.0, and comes with two IPEX connectors for external antennas. With interfaces such as UART, I2C, SPI, ADC, and USB, and support for -40°C to 85°C operation, it is designed for remote monitoring, industrial automation, smart agriculture, and IoT data logging.
Seeed Studio Wio-S3 module specifications:
SoC – Espressif ESP32-S3R8 CPU – Dual-core Tensilica LX7 microcontroller up to 240 MHz with vector instructions for AI acceleration Memory – 8MB PSRAM Wireless – 2.4 GHz 802.11b/g/n WiFi 4 and Bluetooth 5.0 LE + Mesh connectivity
CPU – Dual-core Tensilica LX7 microcontroller up to 240 MHz with vector instructions for AI acceleration
Storage – 16MB external SPI flash (option for 32MB)
Wireless LoRa via Semtech SX1262 with support for global frequency plans including EU868, US915, AS923, AU915, KR920, and IN865 Up to 20.9 dBm LoRa output power and -137 dBm sensitivity (@SF12, BW125kHz) 2.4 GHz 802.11b/g/n WiFi 4 and Bluetooth 5.0 LE + Mesh connectivity via ESP32-S3 Integrated 32MHz TCXO for RF frequency stability 2x IPEX antenna connectors
LoRa via Semtech SX1262 with support for global frequency plans including EU868, US915, AS923, AU915, KR920, and IN865
